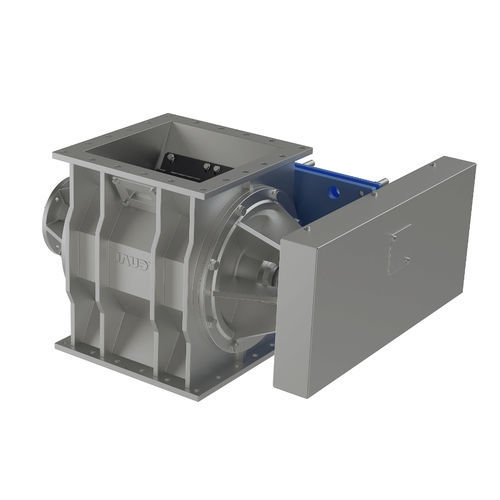

Rotary feeder ZSB chaingasbreaker
Add to favorites
Compare this product
Characteristics
- Type
- rotary
- Product applications
- breaker, chain, bar, bearing, gas, wheel
Description
Safe discharge from silos or bunkers by the breaking of protruding blocks.
NOMINAL SIZES ■ :400x400, 500x500CONVEYING CAPACITY (M³/H) :21 - 160TEMPERATURE :T80, T250, T400MATERIAL HOUSING / BEARING PLATES :Welded construction structural steel / heat-resistant steel / stainless steelMATERIAL FEEDER WHEEL :Structural steel, heat-resistant steel, stainless steelMATERIAL BREAKER BARS :Wear-resistand steelMATERIAL FIXED BREAKER BAR :Wear-resistand steelFEEDER WHEEL :WITH boundary disks
8 pocketsBEARING :Outboard deep groove ball bearingsSHAFT SEAL :Adjustable packing (aramide / PTFE / graphite),
relubricatable packing or with purge-/sealing airPOWER TRANSMISSION :Coupling or chain drive with spur gear motorWEAR PROTECTION :Carbo-/ chromesteel-/ chromo-/ nickel-coatATEX DEVICE :Ex-zone inside / outside 20, 21, 22 / 21, 22 DUST
Ex-zone inside / outside 1, 2 / 1, 2 GAS
