Piston compressor TX 3-BIS
airelectrically-poweredmobile

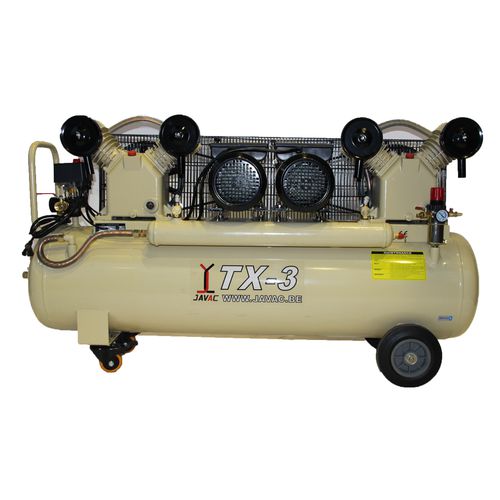

Piston compressor - TX 3-BIS - JAVAC - air / electrically-powered / mobile
Piston compressor - TX 3-BIS - JAVAC - air / electrically-powered / mobile
Piston compressor - TX 3-BIS - JAVAC - air / electrically-powered / mobile - image - 2
Piston compressor - TX 3-BIS - JAVAC - air / electrically-powered / mobile - image - 3
Add to favorites
Compare this product

Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
mobile
Application domain
industrial
Applications
cabinet, for machines
Other characteristics
tank-mounted, belt-driven
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

Max.: 800 l/min
(211.34 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Power

8 ch
(8 hp)

Description

FAD 800 litre/minute Working pressure 8 bar Maximum pressure 10 bar Receiver 150 litre 5 years of warranty Product description The TX-3 BIS, built on a receiver of 150 litre, with an extreme capacity of 1000 litres/minute, at a working pressure of 10 bar, is this world’s most powerful single-phase air compressor, with an extremely large air flow, the ultimate solution for all those who need an high air output, but connected on a single phase network. We have indeed succeeded in running this compressor which is equipped with 2 x 4 HP Nano motors, with a very high Cos Phi, which allows both motors to run simultaneously on a fusible of only 16 AMP. For sandblasting, pearl blasting, whether or not in a sandblast cabinet equipped with a sandblasting gun with a nozzle up to 6 mm, or for cleaning antique furniture, removing rust , this makes the ideal for both private and professional users, but also for the most diverse other applications where a large air flow is required at 230 volt mono.
