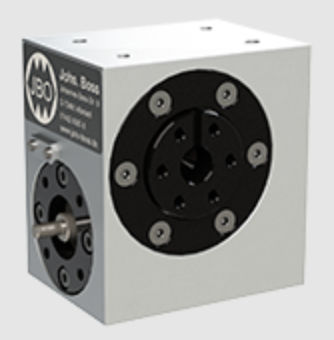

Rotary module HR-85

This compact rotation module is the result of the continuous development of our successful NCT rotary units, and completes our range of low-load products Features compact aluminium housing low maintenance thanks to grease lubrication fully adjustable angle control and unlimited turning angles dividing spindle with indexing slot optionally available: end switch that acts directly on the worm gear and motor flange systems for attaching various motors Technical data transmission - 15:1 stat. perm. cent. load - 100 N max. perm. tilting torque - 10 Nm stat. perm. torque - 5,0 Nm repetition precision* - ± 0,05° concentricity run-out - 0,01 mm pos. precision* - ± 0.2° max. possible positioning speed* - 1000° /s max. drive torque - 2 Nm weight without motor - 1,45 kg
