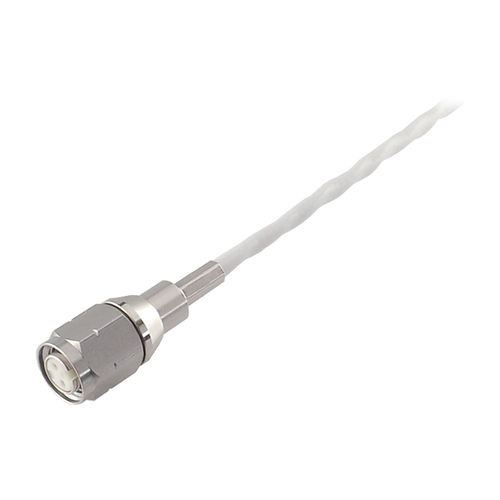

RF connector DSMP-CR24SMAmalehigh-frequency
Add to favorites
Compare this product
Characteristics
- Type
- RF
- Format
- SMA
- Connection type
- male
- Electrical characteristics
- high-frequency, RF
- Material
- PTFE, copper alloy, nickel-plated brass
- Voltage
Max.: 30 V
- Operating temperature
Max.: 85 °C
(185 °F)Min.: -30 °C
(-22 °F)
Description
Compact, High-Performance Differential Connector — DSM Series
The DSM Series is our original 2-pin connector, specially designed for high-speed differential signal transmission in space-constrained applications such as communication and measurement equipment.
- Same Size as SMA
- 100Ω impedance, ideal for differential pair signals
- Excellent resistance to external noise and minimal crosstalk for accurate high-speed transmission
- Ultra-compact form factor delivers high performance in limited spaces
- Screw-fastened type ensures a more secure connection
Key Specifications
Differential Impedance: 100Ω
Operating Temperature Range: -30°C to +85°C
Catalogs
DSMP-CR24
1 Pages
