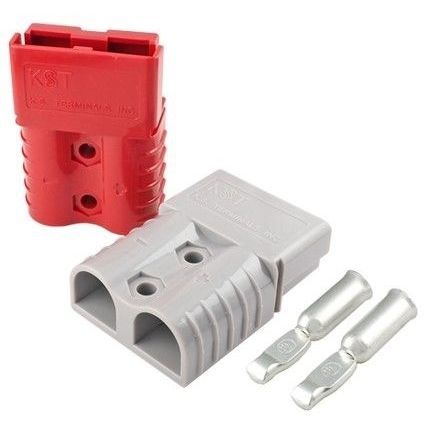

Electrical power supply connector BMC2MS

Sockethousingplug

Battery Modular Connectors, Dual pole type - 80 to 120 Amp - Unisex type usable as both plug and socket. - Various housing colors available for easy identification in the field. - Cable connection uses a crimping method The BMC series is a high-performance connector designed and manufactured to enable efficient product installation and deliver superior cost-effectiveness. To prevent incorrect insertion, a color identification system has been adopted, allowing each connector to mate only with components of the same color. Housings can be freely selected regardless of the current rating or contact part number. These flexible designs are widely used around the world. Specifications Operating Temperature : -20 to +125℃ Housing Materials : PC glass filled, etc. Contact Material : Copper Alloy, Ag plating
