Diesel skid steer loader 3TS-8W

Overview

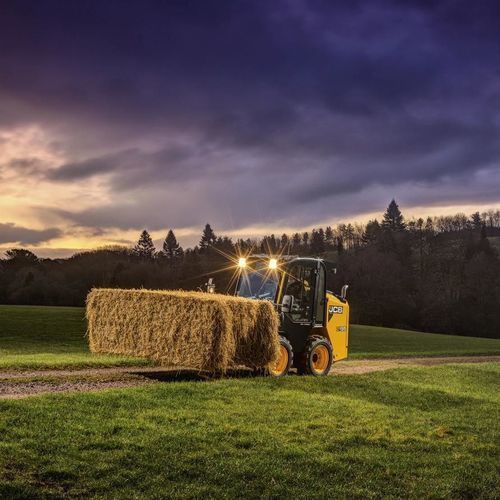

The JCB 155 is a small platform skid steer loader with a radial lift path, designed for tasks close to ground level and mid-range dumping. Rated operating capacity (SAE) 703 kg, powered by a 42 kW JCB Diesel by Kohler engine. Low boom profile and a wide-opening side door improve visibility and safe access.

Key specifications

• Operating capacity (SAE): 703 kg
• Engine: 42 kW JCB Diesel by Kohler (T4F)
• Lift geometry: Radial
• Hydraulic flow: standard 70 l/min, optional high-flow up to 115 l/min
• Standard industry quick hitch compatible with JCB and other brands

Power and performance

• Efficient diesel engine for cost-effective productivity at ground and mid-range heights
• Optional high-flow hydraulics for maximum attachment versatility
• JCB Smoothride System (SRS) option improves load retention and loading cycle times
• Hydrostatic transmission for smooth, controllable travel

Strength and durability

• Fully welded frame and robust undercarriage for long service life
• Large-diameter quick-hitch pins and protected boom mounting for enhanced breakout force and durability
• Components positioned to reduce exposure to damage on site

Operator comfort and safety

• Low boom profile and Powerboom design for improved side visibility
• Spacious cab (approx. +46% vs nearest competitor), wide side door for safe entry/exit
• Electric joystick controls, adjustable seating and clear instrument layout
• Sealed-cabin and pressurisation options for dusty environments

Applications and attachments

• Typical tasks: digging, material handling, loading, dumping over walls, landscaping, snow clearing, forestry and agricultural chores
• Compatible attachments: buckets, forks, sweepers, stump grinders, dozer blades, hydraulic breakers and specialised implements

Technical data (indicative)

• Operating capacity SAE: 703 kg
• Engine power: 42 kW
• Hydraulic flow: 70 l/min (standard) – up to 115 l/min (high-flow)
• Maximum travel speed: up to ~18.5 km/h (model dependent)
• Lift path: Radial
