Diesel engine telehandler TM320

ergonomichigh payloadarticulated

Overview

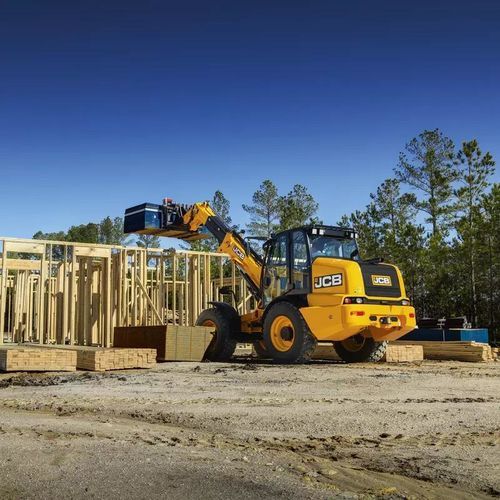

The JCB TM320 is a telescopic wheel loader that combines the loading performance of a wheel loader with the reach and versatility of a telescopic boom. Permanent 4WD, servo controls, articulated steering and a broad range of attachments make the TM320 suitable for demanding site applications.

Key features

• Model: JCB TM320 telescopic wheel loader with articulated steering.
• Lift capacity: 3,200 kg; max lift height: 5.2 m; max reach: 2.95 m.
• Engine: 93 kW EcoMAX / DieselMAX (Stage V) tuned for torque at low revs.
• Transmission: 4-speed Powershift; top speed up to 33 kph.
• Hydraulics: Variflo 140 l/min with proportional auxiliary control.
• Drive: Permanent 4WD; optional Auto Smoothride (SRS).

Cab and controls

• CommandPlus cab with central seat layout, ergonomic controls and fully adjustable luxury seating.
• Optional air conditioning, enhanced ventilation and ample storage for long shifts.
• Inclined front steps and well-positioned grab handles for safe, easy access.

Engine, transmission and hydraulics

• Efficient EcoMAX / DieselMAX engine delivering power and torque at low engine speeds to maximise fuel economy.
• Proven 4-speed Powershift transmission and proportional control of auxiliary services for heavy rehandling tasks.
• Large fuel tank (approx. 160 L) to extend operating intervals.

Safety and visibility

• Excellent all-round visibility thanks to a central seat, one-piece windscreen, low boom pivot and narrow pillars.
• Optional rear-view camera and high-intensity LED lighting package for improved site safety.
• Full guarding and underbody protection options available for heavy-duty use.

Versatility and attachments

• Compatible with a wide range of implements: buckets, forks, grapples, hammers, brushes and more.
• Adaptive load control protects the machine and operator from forward overloads.
• Designed for reduced downtime with major greasing intervals at 500 hours.

Specifications

• Maximum lift height: 5.2 m
• Maximum lift capacity: 3,200 kg
• Engine power: 93 kW
• Maximum reach: 2.95 m
• Top speed: 33 kph
• Operating weight: ≈ 8,142 kg
• Fuel tank: ≈ 160 L
• Transmission: 4-speed Powershift
• Drive: Permanent 4WD
• Hydraulics: Variflo 140 l/min
