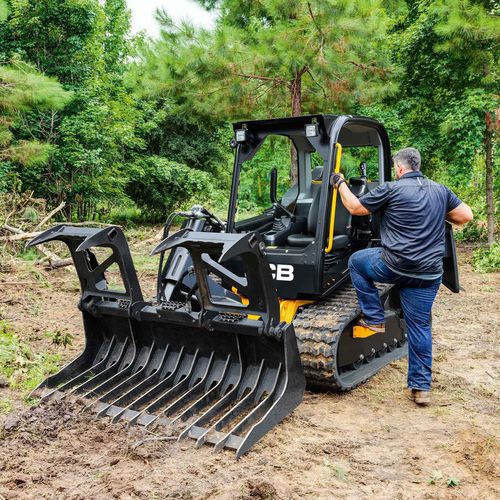

Diesel compact track loader 270T

Overview
The JCB 270T is a vertical-lift compact track loader featuring a Hi‑Viz Powerboom and wide rubber tracks to improve operator visibility and stability on slopes. It delivers a rated operating capacity of 1,235 kg and supports a broad range of attachments for demolition, material handling and site work.

Key features

• Wide-opening side door for safe entry and exit
• Spacious cab with enhanced visibility (up to 270° view) and laminated glass options
• Single-arm Powerboom for vertical lift and increased reach
• Standard 400 mm rubber tracks (450 mm optional on 270T)
• Compatibility with up to ~31 attachments including breakers, buckets and mulchers

Power and performance

• Engine options up to about 55 kW; available 42 kW JCB Diesel by Kohler T4F without exhaust aftertreatment
• Standard hydraulic flow 90 l/min; optional high-flow up to 125 l/min for demanding attachments
• Smoothride System (SRS) option to improve load retention and loading cycle speed

Strength and durability

• Fully welded chassis for a rigid structure
• Powerboom with internal hose routing to protect hydraulics from impact
• Robust undercarriage for consistent performance on rough terrain
• Large quick-hitch pivot pins to increase breakout force

Safety and access

• Side entry door reduces need to climb over attachments
• Low cab noise level ≈76 dB(A) and ergonomic controls for reduced operator fatigue

Applications

• Demolition, breaker work, rock sawing, loading, landscaping, forestry, agriculture, waste handling, snow clearing

Technical specifications (examples)

• Rated operating capacity: 1,235 kg
• Loader lift capacity with bucket: up to 2,634 kgf
• Dump height: approx. 2.38 m
• Engine power: up to ~55.4 kW (model dependent)
• Travel speed: 7.7–12.5 km/h
• Standard rubber track width: 400 mm (450 mm optional on 270T)
• Cabin noise (approx.): 76 dB(A)
