Tandem road roller CT430-140

vibratingmanual

Overview

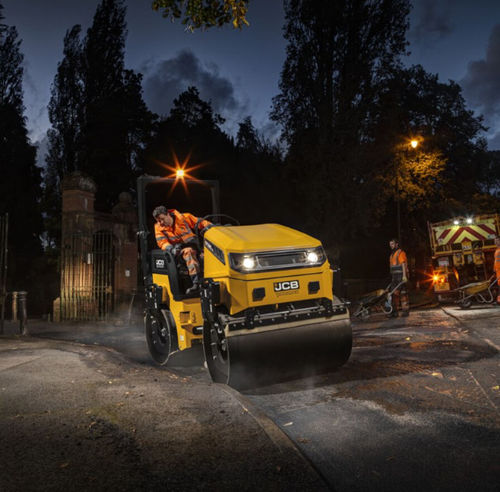

The CT430-140 is a compact vibratory tandem roller from the JCB VIBROMAX range, designed for versatile compaction in confined sites. With an operating weight of 4,500 kg, a 1,400 mm drum and a 36 kW JCB Diesel by Kohler engine (EU Stage V), it delivers consistent performance, excellent drum-edge visibility and easy on-site operation.

Perfect for

• Compacting tarmac, hardcore, stone and asphalt
• Road construction and resurfacing projects
• Tarmacking drives, car parks and recreation areas
• Work on sports courts and pitches
• Road repairs, patching and confined-area compaction

Easy to use

• User-friendly control panel and glove-operable switches
• Operator stand accessible from either side with integrated grab handles and rails
• Responsive directional drive lever for smooth manoeuvring
• Hourglass drum design and laterally sliding seat for improved drum-edge visibility

Easy to be productive

• 36 kW JCB Diesel by Kohler engine (EU Stage V compliant) for reliable power
• Chamfered drum edges for a smooth finish
• Rear drum flush with chassis to improve operator sightlines
• Pressurised water sprinkler with upward-facing nozzles for consistent drum wetting
• Fixed drum scrapers for improved durability
• Protected electrical system rated to IP67/69
• Manually adjustable offset to work around kerbs and ironwork

Easy to keep safe and secure

• Lockable console cover for added security
• JCB LiveLink telematics available for location tracking, geofencing and alerts
• Optional key immobiliser for theft prevention
• Operator-present seat switch to support safe operation
• Foldable ROPS frame for compact storage and transport

Easy to service

• Maintenance-free centre joint (no greasing required)
• Accessible, clearly labelled fill points on opposite sides of the machine
• High-lift bonnet and Kohler engine installation for simple daily checks
• Central radiator location for straightforward cleaning and service access
• Plastic fuel and water tanks to avoid corrosion issues
• Machine ECU reduces relays and simplifies diagnostics

Specifications

• Operating linear load: 16.1 kg/cm
• Drum width: 1,400 mm
• Max. engine power: 36 kW
• Gradeability: 40 %
• Centrifugal range: 44.0 kN - 63.0 kN
• Operating weight: 4,500 kg
