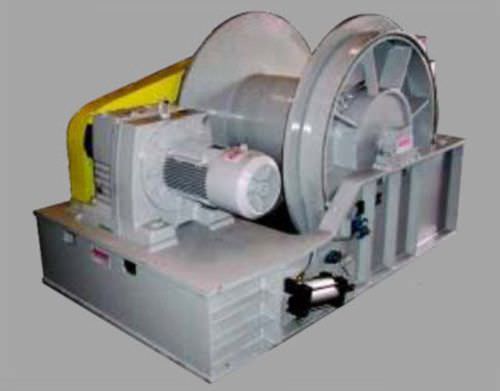

Electric winch CP serieswire ropepullinggear
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- wire rope
- Application
- pulling
- Other characteristics
- gear
- Capacity
Min.: 841 kg
(1,854.1 lb)Max.: 8,364 kg
(18,439.5 lb)- Speed
Min.: 4,500 mm/min
(3 in/s)Max.: 13,900 mm/min
(9.1 in/s)- Cable diameter
10 mm, 11 mm, 13 mm, 16 mm
(0.39 in, 0.43 in, 0.51 in, 0.63 in)- Motor power
Min.: 0.8 kW
(1.09 hp)Max.: 7.5 kW
(10.2 hp)- Weight
Min.: 166 kg
(365.967 lb)Max.: 623 kg
(1,373.48 lb)
Description
The CP Electric series can be ordered with starter panels and control packages, marine grade and explosion proof motors. Grooved drums, rotary limit switches, and adjustable torque limiter disengaging clutches are available options.
Voltage
Jeamar CP Electric Winches are available in 230 / 460 / 575 / 3/ 60 voltages.
Nema Design
There is a totally enclosed, fan cooled electric motor with adequate starting torque to overcome the initial inertia of the pulling load.
Gear Reduction
Jeamar CP Electric Winches have parallel helical gear reducer with a final chain drive.
Automatic Brakes
The spring applied, electric release brake activates in the event of power interruption to stop and hold the load securely.
Heavy Duty Steel Frame
Jeamar CP Electric Winches feature heavy duty welded steel frames and guarding.
