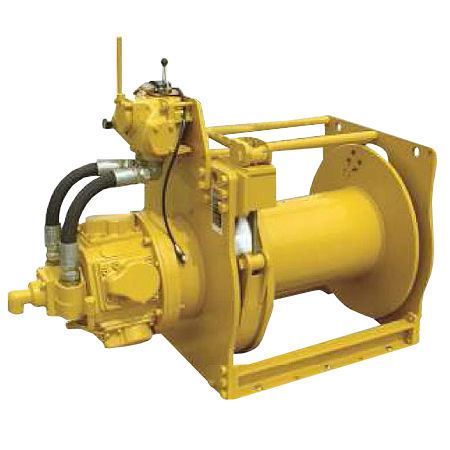

Pneumatic winch WA series
wire roperotary drum

pneumatic winch
pneumatic winch
Add to favorites
Compare this product


Characteristics

Operation
pneumatic
Type
wire rope
Other characteristics
rotary drum
Capacity

Min.: 2,945 kg
(6,492.6 lb)

Max.: 13,227 kg
(29,160.5 lb)

Speed

5,200 mm/min, 9,100 mm/min, 10,900 mm/min, 11,500 mm/min
(3.4 in/s, 6 in/s, 7.2 in/s, 7.5 in/s)

Cable diameter

16 mm, 22 mm, 28 mm
(0.63 in, 0.87 in, 1.1 in)

Motor power

7.5 kW, 15 kW, 22.5 kW
(10.2 hp, 20.39 hp, 30.59 hp)

Weight

500 kg, 1,455 kg, 1,727 kg, 1,909 kg
(1,102.311 lb, 3,207.726 lb, 3,807.383 lb, 4,208.625 lb)

Description

With full drum line pull of 4,500 to 22,00 lbs available, these units are perfect for many industrial, mining and oil field applications. This series of Jeamar winches are constructed with heavy duty welded steel frames and feature sandblasted and painted guarding. Options The WA Series options include automatic band brakes, grooved and divided drums, air preparation packages, drum guards, remote pendant controls and mufflers. Air Motors Industrial piston type air motors ensure hours of trouble free operation. The WA Series winches feature automatic disc type holding brakes and manual band type holding brakes. They have integral proportional directional control valves designed for harsh environments.
