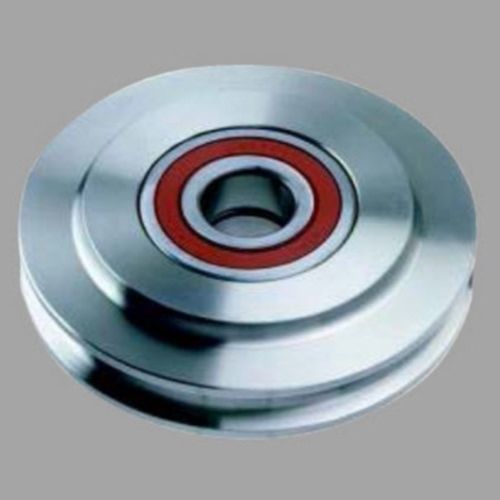

Groove pulley ST series
for cablesstainless steelcustom

groove pulley
groove pulley
groove pulley
Add to favorites
Compare this product


Characteristics

Type
groove
Applications
for cables
Material
stainless steel
Other characteristics
vertical, horizontal, custom

Description

Our Stainless steel sheaves and blocks are ideal for use in corrosive environments and in industries such as food processing, pharmaceutical as well as chemical production and handling. Premium steel options available, click here. Stainless sheaves are available in standard sizes from 2 inch to 16 inch and from 3,500 and 41,000 lbs working load limits. Vertical and horizontal directional blocks are also available in stainless steel to complement the three sizes of sheaves. For maximum flexibility, the dimensions of Jeamar’s stainless steel sheaves and blocks are identical to our standard line of heavy-duty sheaves and blocks. Custom sizes are available to meet your exact requirements of size and capacity. Lifetime Lubrication All Jeamar stainless steel sheaves come standard with lifetime lubricated, sealed, deep-groove ball bearings for long life and minimum maintenance. Block Loading Jeamar stainless steel sheaves are rated for the full working load limit at 180° rope angle. High Sheave-to-Rope Ratio Jeamar sheaves have a minimum sheave-to-rope ratio of 15:1. This ensures a large radius for the rope to bend around, which in turn decreases flexing of the rope and substantially increases rope life. Exceptional Arc of Support Designed with a minimum arc of support for the rope of 125 degrees, ensuring that the rope’s cross sectional shape is maintained under normal load conditions. This increases rope life and increases sheave life by reducing gouging.
