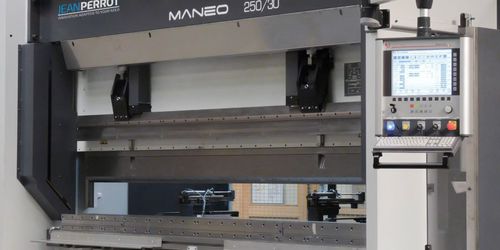

Hydraulic press brake MANEO 250/30

high-speedwith automatic tool changersemi-automatic

JEAN PERROT semi-automatic bending center is a high speed bending machine specifically designed for high-volume production runs. This 250 tons / 3 meters press brake is equipped with 3 different types of punches and 3 different types of dies. With the performance of this machine, a part which needs 9 bends is ready in less than 75 seconds ! 3 press brakes in 1 custom engineered machine semi automatic bending press brake center With the sheet metal bending center MANEO, even complex parts can be bend in one step: you save time & remove buffer stocks between 2 or 3 bending phases. Indeed, the automatic tool changing system allows to efficiently use specific bending processes such as joggle bending or hemming processes. The operator just need to place its part following the bending sequence. Bending center MANEO is equipped with 3 types of punches & dies: The press ram is equipped with 3 different lines of punches (height & profiles). Each line of punches is loaded or retracted by 2 hydraulic cylinders and the vertical movement is ensured by a ball bearing system for great speed & precision. press brake automatic tool change on three punches and dies The lower table is equipped with 3 different line of dies (1 bend 90°, 2 joggle bends). Each die is associated with one punch. Dies move horizontally and automatically, according to the bending sequence. For perfect guidance over time, the bed is mounted on bronze alloy rails with graphite-inserts.
