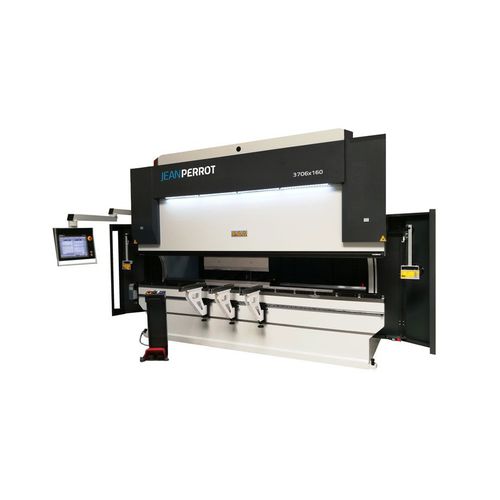

Hydraulic press brake APHS
CNC-synchronizedautomatic

hydraulic press brake
hydraulic press brake
hydraulic press brake
hydraulic press brake
hydraulic press brake
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Control type
CNC-synchronized
Other characteristics
automatic
Press force

Max.: 5,884 kN

Min.: 392 kN

Folding length

Max.: 6 m (19'08")

Min.: 1.3 m (4'03")

Description

From 1.25 to 6 meters long with a press force from 40 to 600 tons, this hydraulic synchronized press brake is adapted from one-off part bending to small & medium volume series. This CNC press brake aims to simplify operator’s work thanks to the intuitive numerical control devices DELEM DA 66T or DA 69T according to your needs. Features of our CNC press brake APHS: Numerical controls DELEM DA 69T with 2D graphical touchscreen and 3D visualition in simulation & production Numerical controls DELEM DA 69T 3D with offline software Manual punch clamping system : Euro style or quarter turn handlepress brake akas laser security protection system Self-centered table for multi-V dies (4V) Mechanical auto-crowning system driven by CNC machine control device Backgauge axis : 2 axis motorized ( X and R) and up to 6 axis (option) Latest laser security protection system to ensure operator’s safety Front support arms on linear guide rail system
