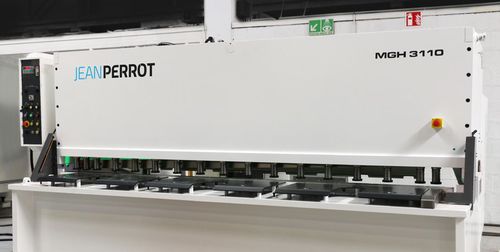

Hydraulic shear MGH
for metal sheetsswing-beamCNC

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
for metal sheets
Type
swing-beam
Other characteristics
CNC
Plate thickness

Max.: 13 mm (1 in)

Min.: 6 mm (0 in)

Working length

Max.: 4 m (13'01")

Min.: 3 m (9'10")

Description

The hydraulic swing beam shear combines performance & simplicity. The robust steel welded machine frame ensure high reliability and excellent cutting quality. These shearing machines allow precise cuts with reducing deformations to a minimum. The low cutting angle on this type of shears allows to limit sheet metal twist and bow. Thanks to the Cybelec CybTouch 6 numerical controls and its touch screen, the MGH shear is simple to operate. Apart from its performance, it complies with the CE certification, ensuring completely safe working conditions. Features of the MGH hydraulic swing beam shear: From 3 to 4 meters to cut sheet metal from 6 to 13 mm thick. Standard Equipment cybtouch numerical controls for shearing machines cybelecCybelec CybTouch 6 numerical control device (touch screen) 1000mm square arm Ball transfer table Manual blade gap adjustment Shadow line lighting 1000 mm motorized ball-screw back gauge Centralised manual lubrication system 2 front arm supports of 1000 mm CE certification

VIDEO
