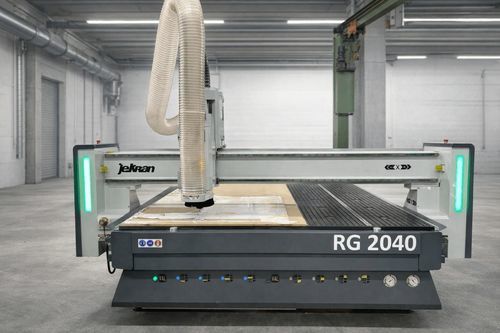

CNC router RG2040

digitalautomatic3-axis

Overview
Heavy-duty gantry CNC router engineered for continuous production and high-precision routing across wood, plastics, non-ferrous metals and composites. Built on a welded steel bed and driven by a 9.5 kW Italy HSD spindle (ER32) at 24,000 RPM, the RG2040 integrates automated tool handling, vacuum workholding and dust control for industrial workflows.

Highlights

• 9.5 kW Italy ATC HSD spindle, ER32, 24,000 RPM
• 10-position automatic tool changer (linear magazine) — ISO30
• Working area: 2050 x 4050 x 200 mm
• Positional accuracy: ±0.05 mm/m
• HIWIN linear rails and helical rack & pinion transmission
• Yaskawa servo motors with Shimpo planetary reducers
• 8-zone T-slot vacuum working table
• Electronics: Siemens & Schneider
• Igus power cable harnesses (Germany)
• Built-in 3 kW dual-bag dust collector
• 5.5 kW Germany Becker vacuum pump for vacuum table
• Automatic lubrication system for linear rails and mechanical components

Notes on operation and configuration
The standard electrical configuration is 380V, 3-phase, 50Hz. Alternative voltage/frequency configurations (for example 220V regions) can be supplied. PC-based control enables integration with production software and automation systems.

Technical table (Specification → Details)
Lathe structure: Heavy-duty welded steel bed
Working area (X, Y, Z): 2050 x 4050 x 200 mm
Max travelling speed: 80 m/min
Max working speed: 45 m/min
Machine accuracy: ±0.05 mm/m
Spindle: 9.5 kW Italy ATC HSD, ER32, 24,000 RPM
Inverter: Delta
Tool magazine: Linear, 10 positions, ISO30
Working table: T-slot vacuum, 8 zones
Transmission: HIWIN linear rails + helical rack and pinion
Working mode: Yaskawa servo motor + Shimpo planetary reducer
Operating system: PC control system
Voltage: 380V, 3PH, 50Hz (standard) - other configurations available
Lubrication: Automatic
Electronics: Siemens & Schneider
Power cable: Igus Germany
Dust collector (option): 3 kW, dual bags
Vacuum pump (option): Germany Becker, 5.5 kW

Technical specifications

• Model: RG2040
• Structure: Heavy-duty welded steel bed
• Working area: 2050 x 4050 x 200 mm
• Spindle: 9.5 kW HSD (ER32), 24,000 RPM
• Tool changer: Linear 10-position ISO30
• Accuracy: ±0.05 mm/m
• Max travelling speed: 80 m/min
• Max working speed: 45 m/min
• Transmission: Helical rack & pinion + HIWIN linear rails
• Servo & reducer: Yaskawa servos + Shimpo planetary reducer
• Table: T-slot vacuum, 8 independent zones
• Electronics: Siemens & Schneider
• Inverter: Delta
• Vacuum pump: Becker 5.5 kW (optional/included)
• Dust extraction: 3 kW dual-bag (optional/included)
• Lubrication: Automatic system
• Voltage (standard): 380V, 3PH, 50Hz
• Control system: PC control system
