Air blower GR,JET-Radial
radialsingle-stage

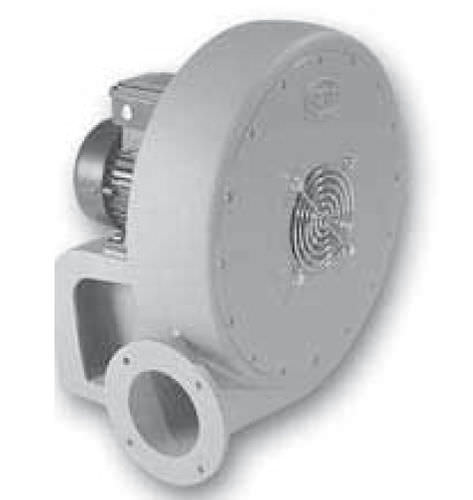

Air blower - GR,JET-Radial - JetAir Technologies - radial / single-stage

Add to favorites

Compare this product

Characteristics

Type

air

Technology

radial

Number of stages

single-stage

Flow

700 m³/h, 1,000 m³/h, 1,300 m³/h, 2,500 m³/h
(24,720.267 ft³/h, 35,314.667 ft³/h, 45,909.067 ft³/h, 88,286.667 ft³/h)

Operating pressure

230 mbar, 240 mbar, 280 mbar, 450 mbar
(3.336 psi, 3.481 psi, 4.061 psi, 6.527 psi)

Nominal power

Max.: 2.8 kW
(3.807 hp)

Min.: 0.4 kW
(0.544 hp)

Description

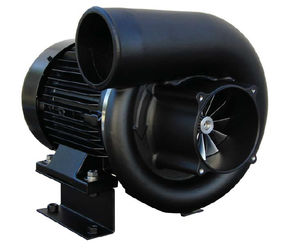

JetAir Technologies’ Radial Blowers are engineered for moderate flow and low pressure applications from .05HP [0,4kW] to 4HP [2,8kW]. The JET-Radial™’s are designed for long-term dependable use in the most demanding applications. Jet-Radials™ are constructed using cast volutes, rugged IP54 TEFC motors and externally installable impellers for reliable operations and simple maintenance. Each JET-Radial™ is available with tube or flange inlet / outlet configurations.
