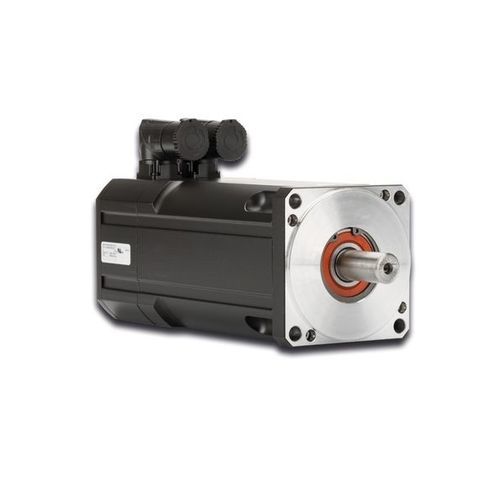

3-phase servomotor

DCsynchronous24 V

Going with the servo amplifiers of the JetMove series are Jetter motors featuring DC link voltages of DC 24 to 560 V and a great selection of motor windings. By an appropriate combination you can achieve the speed which best fits your application and which also makes the most of the rated current of the servo amplifier used. All Jetter AG servo motors are extremely rugged 3-phase synchronous motors with UL certification. They are available in several series: JL, JK, JH, and JHN. Numerous options for connector outlets, degrees of protection and encoder design are available. Along with this comprehensive range of motors, we offer pre-fabricated and tested servo cables and corresponding gearboxes. JL motors JL motors cover the range from 0.1 Nm (JL1) to 115 Nm (JL8). They feature classic winding technology. JHN motors The segment winding technology on JHN motors has been automated and the motor structure optimized, providing high power density in a very compact design. The motors are available in sizes 2 to 7 with 0.28 Nm to 60 Nm. JHQ motors The JHQ motors comprise frame sizes 2-5 (JH) and 2-8 (JL). Further they have got two intermediate sizes, 23 and 45. Their high torque constant makes them an alternative to the so far used JL and JH motors if an adequate quantity of them is ordered. Key benefits of servo motors by Jetter AG: All motors have UL certification for the USA and Canada (except for JL1) and can therefore be exported to those countries. They also have reduced circular runout tolerance as standard, resulting in a smooth-running system.
