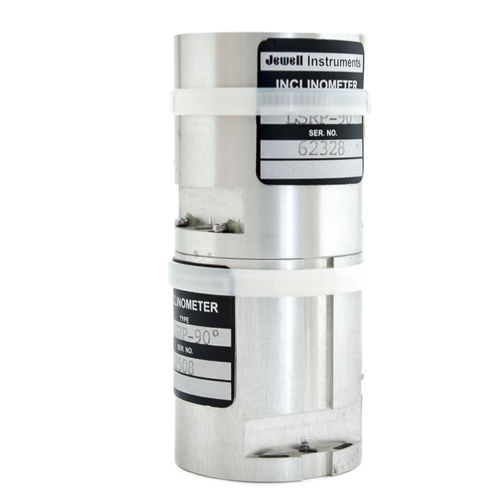

Single-axis inclinometer LSR series

analoginertialrugged

Single-Axis Analog Inclinometer The Jewell LSRP Series inclinometer is an extremely sensitive, rugged transducer designed to provide horizontal angle or vertical deviation measurements with virtually infinite resolution. These fluid damped compact, cylindrical shaped sensors are stackable to meet the needs of applications with space constraints while facilitating the use of several inclinometers for multi-axis measurements. FEATURES: • ±1° to ±90 Input Full Range • Only 1.4” diameter X 1.60” Tall in Size • Withstands 20 grms of vibration • Stackable for 2-Axis Sensing • Solder Pins Terminations • RoHS version available APPLICATIONS: • Heavy Construction Grading • Ship and Barge Leveling • Deviation Surveys • Continuous Casting • Weapons Platform Leveling • Steel Mill Ladle Position • Oil and Gas Well Bore Mapping • Geophysical Monitoring • Mobile Antenna Positioning
