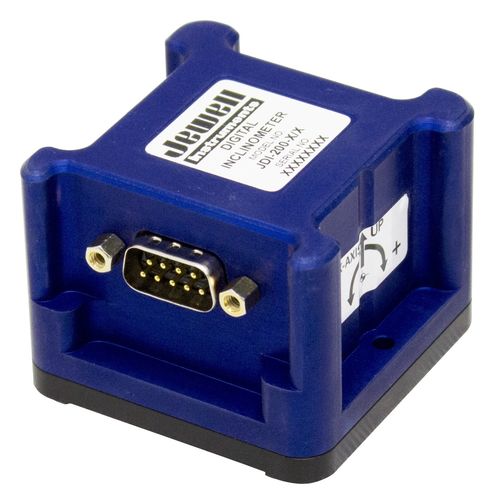

2-axis inclinometer JDI-100/200 series

RS-485RS-232Modbus

MEMS Inclinometer Series The JDI-100/200 series is a digitally temperature compensated inclinometer available in single and dual axis configurations. The robust and rugged design is great for industrial use, yet includes the low-cost MEMS technology. These units are available with DB9, Pigtail, Deutsch, Double Deutsch, 6-Pin Circular (C06), or M12 connectors for maximum versatility. FEATURES: • Ranges: ±1°, ±3°, ±14.5°, ±30°, and ±60° • Digital Interface Options: ASCII (RS-485/RS-232) and Modbus (RS-485) • Robust & Rugged Enclosure • Single or Dual Axis Options • Low-cost MEMS Technology • RoHS and REACH Compliant • Single DC Power Input - Galvanically Isolated • Integrated Temperature Sensor • IP67 Seal (when mated to IP67 connector) APPLICATIONS: • Industrial Automation & Control • Construction & Agricultural Equipment • Solar Tracking • Mobile Cranes • Platform Leveling/Positioning • Mobile Radar Equipment • Bridge Monitoring
