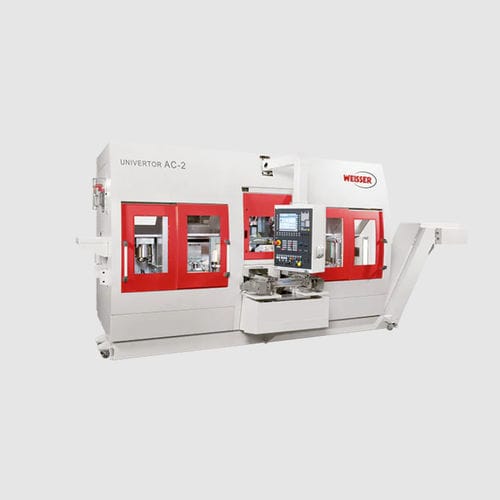

CNC turning center UNIVERTOR AC series

2-axis12 toolshigh-precision

Left and right machine variants available Linear guides designed with high accuracy and preload classes in all machine axes Direct path measuring systems in all machining axes (glass scales) The machines of the AC-1 series are highly flexible and predestined for the complete machining of different batch sizes, with very high quality requirements. The design as a right-hand or left-hand machine concept realizes the ideal adaptation to the production sequence. Highly productive simultaneous machining in one machine with up to two powerful disk turrets (4 axes) or several grinding spindles enables intelligent technology processes with high savings potentials and creates high-precision machining results. Left and right machine variants available Machine columns with very good stiffness behavior and optimized damping properties due to remaining sand in the model Linear guides designed in high accuracy and preload classes in all machine axes All linear guides and feed drives arranged outside the working area for protection against chips Direct path measuring systems in all machining axes (glass scales)) High dynamics of all machine axes Optimal chip fall downwards Self-built turning spindles with very good concentricity and axial run-out accuracy values Easy installation and removal of the turning spindle in the event of repairs Compact footprint due to integrated handling unit (2-axis version with swivel unit) Main spindle A6 according to DIN 55026 Interface in tool turret VDI or Capto possible Integrated measuring probe possible Driven tools possible (for drilling operations) 4-axis machining possible (by additional turret on cross slide unit)
