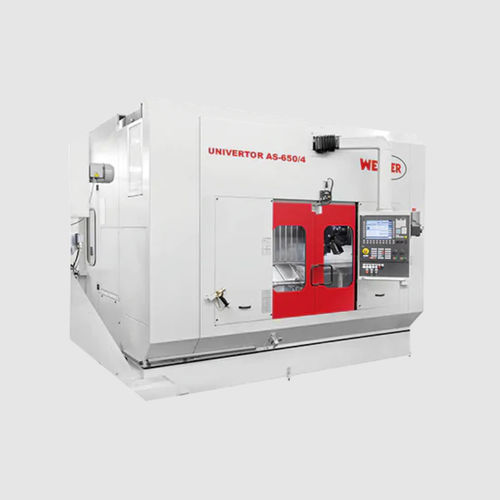

CNC turning center UNIVERTOR AS

12 toolsfor shaft machiningdrilling

Available in two machine sizes Left and right machine variants available High dynamics of all axes Modular designed, single-spindle pick-up precision turning machine. Designed for complete machining of various batch sizes at low unit costs and with high machining and quality requirements. Due to the automation solution integrated as a pick-up system, no loading devices or separate robot solutions are required. The cross slide of the UNIVERTOR AS, that carries both the motor spindle and the NC tailstock, is designed horizontally. The tailstock and steady rests travel NC-controlled. CONCEPTUAL ADVANTAGES PICK-UP LOADING Available in two machine sizes Machine columns with very good stiffness behavior and optimized damping properties due to remaining sand in the model Linear guides with high accuracy and preload classes in all axes Direct path measuring systems in all axes (glass scales) High dynamics of all axes In-house built turning spindles with very good accuracy values within concentricity and axial run-out Simple installation and disassembly of the turning spindle in case of repair needs Green turning, hard turning, scrubbing, and finishing operations Simple automation, only conveyor belt required Patented pick-up principle optimized for machining of shaft parts Proven machine concept with over 500 machines built Compact footprint Main spindle A6 according to DIN 55026 Tailstock with MK 4 mounting Tool turret interface VDI or Capto possible 4 OPTIONS PICK-UP LOADING Driven tools possible (for drilling operations) Rotational turning possible NC adjustable steady rest possible Integrated measuring probe possible Additional external grinding unit possible
