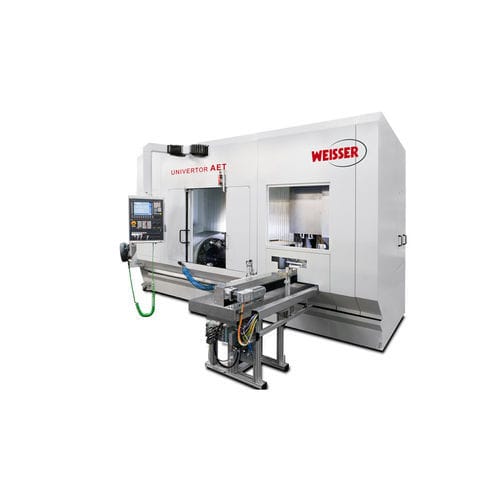

Cutting finishing machine UNIVERTOR series

millingsawingdrilling

Automatic loading with the integrated pick-up system Powerful centric clamping for the reliable fixing of raw parts Centering, spindling, drilling and milling of shaft ends Modular designed finishing machine with WEISSER Pick-up system for parallel machining of one workpiece. The movable base carrier is equipped with robust centric clamps for the pick-up of shaft-shaped workpieces. No additional robots or gantry solutions are necessary, because the machine loads itself. Economical cutting to length and centering on the UNIVERTOR AE ensures precise workpiece pick-up for subsequent process steps within the complete machining operation. The design with robust disc or crown turrets enables spindling, milling, drilling and deep boring of the shaft ends using driven tools. Left and right machine versions available Easy automation, only pallet belt required Patented pick-up principle adapted to use for end machining of shafts Linear guides designed in high accuracy and preload classes in all machine axes Direct path measuring systems possible in all machining axes (glass scales) High dynamics of all machining axes Optimal chip fall downwards Modular designed finishing machine with WEISSER Pick-Up System for parallel machining of two workpieces as twin version. The concept of a fixed and a movable disc or crown turret, in combination with the movable mounting slide of the centric clamping device, enables simultaneous machining on both shaft ends. No additional robots or gantry solutions are necessary, because the machine loads itself.
