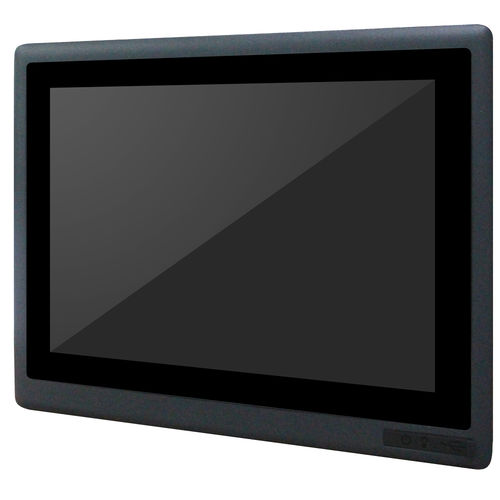

TFT LCD panel PC ALAD-K1220T
capacitive touch screenLED backlight5-wire resistive touch screen

TFT LCD panel PC
TFT LCD panel PC
TFT LCD panel PC
TFT LCD panel PC
TFT LCD panel PC
Add to favorites
Compare this product


Characteristics

Screen type
TFT LCD, capacitive touch screen, 5-wire resistive touch screen, LED backlight
Display size
12"
Resolution
1024 x 768
Processor
Intel® Core i5, Intel® Core i7, Intel® Core i3, Intel® Skylake Processor
Other characteristics
fanless, all-in-one, aluminum frame, VESA mounting, Windows 10, Linux, Windows 7, Windows 8.1
Applications
industrial

Description

[Specification] 1.Structure: Aluminum die-casting front bezel, fin-shaped radiator shell 2.Mounting: Panel mounting, VESA 100*100mm,Rack mounting 3.Dimension: (W*H*D):315*259*51mm; mounting cut out(W*H): 303*247mm 4.Net weight: 2.8KG 5.Type of LCD: 12.1''TFT LED 6.Resolution of LCD: 1024*768 7.Type of Touch: 5 wire resistive touch/Projected capacitive touch 8.Certification/EMC: CE/FCC Class A [Key features] Aluminum die-casting chassis, fanless design  12.1'' LED TFT LCD, capacitive/resistive touch  Intel® Skylake-U Core I3/I5/I7 CPU 1*DDR4 2133 SODIMM, Max 16GB 1*Mini PCIe (PCIe+USB) 2*COM, 2*LAN, 4*USB3.0, 1*USB2.0 2.5'' HDD Bay, 1*M.2  ATX button&remote button DC 9~36V power input [Applications] MES and machines HMI [Certification] CE/FCC Class A
