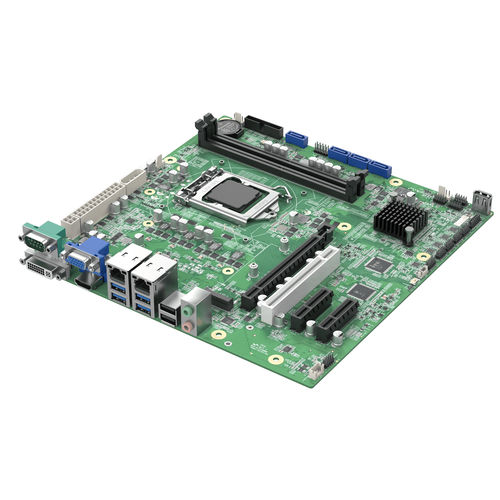

Industrial single-board computer MATX-I964

ATXmicro-ATXIntel® Celeron®

MATX-I964 is an industrial motherboard powered by Intel H310 chipset, supporting Intel 8/9th Gen Core I9 / I7 / I5 / I3 /Pentium/Celeron CPU, designed according to the standard Micro ATX motherboard specification. It is suitable for all 4U rack and wall-mounted rack on the market, very suitable for machine vision, data acquisition and other fields. Intel 8/9th LGA1151 CPU, Dual-channel DDR4, VGA/HDMI/DVI-D, Dual LAN,4*USB 3.1, 6*USB 2.0, 6*COM, 4*PCIe/PCI, ATX power Key Features: Intel H310 PCH，supports Intel 8/9th Gen. Coffee lake-S Core I9 / I7 / I5 / I3 /Pentium/Celeron LGA1151 CPU Dual - channel DDR4 2666MHz UDIMM, up to 64GB VGA+HDMI/ VGA +DVI-D/ HDMI +DVI-D dual independent displays 1*I219LM and 1*I226V dual Gigabit network ports 4*USB3.1, 6*USB2.0, 6*COM, 1*8bit GPIO,1*LPT 1*PCIe X16, 1*PCI, 2*PCIe X4, a total of four slots; 4*SATA3.0 6.0Gbps, 1*M.2 2242/2280 M-Key, Nvme Realtek ALC897 HD audio chip, support 5.1 channels, optional support amplifier 24pin ATX +4pin 12V ATX power
