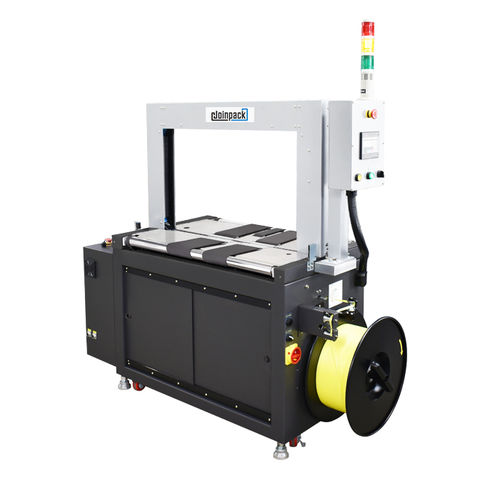

Fully-automatic strapping machine A-88NAB220V single phase380V three-phase230V single phase
Add to favorites
Compare this product
Characteristics
- Type
- fully-automatic
- Power supply
- 220V single phase, 380V three-phase, 230V single phase, 440V three- phase
- Other characteristics
- stainless steel, in-line, with integrated touch screen HMI, servo-motor
- Overall height
1,430 mm
(56.3 in)- Overall width
580 mm
(22.8 in)- Strap width
5 mm, 6 mm, 9 mm, 12 mm, 15 mm
(0.197 in, 0.236 in, 0.354 in, 0.472 in, 0.591 in)- Power
1.2 kW
(1.63 hp)- Weight
330 kg
(727.53 lb)
Description
A-88NAB is designed for various in-line applications.
A-88NAB can work with different strap widths, provide wide tension range as well as rapid strapping speed with servo motor driven.
Diversity of assist functions is all as standard equipped.
• Belt driven
• Looping ejector
• Short feeding sensor
• Coil end eject system
• Waist auto loading system
• Conveyor speed adjustable
• Upstream and downstream interlock
• Run on 5,6,9,12,15 mm strap (specified)
Options
• Top press - P
• Various arch sizes
