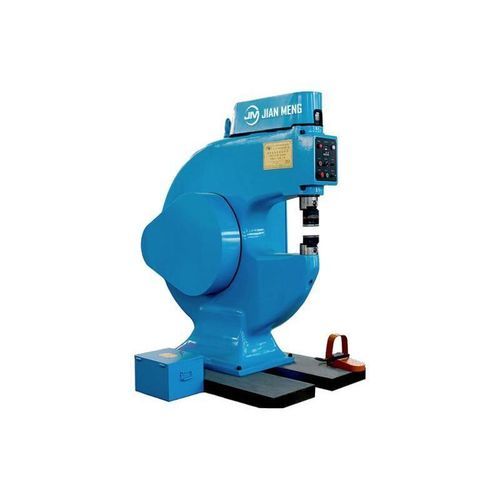

Profile forming machine PF665

sheet metalmetalcontinuous

Product Details
Suitable for scenarios such as aerospace, automotive restoration, and home appliance casings.

Product Overview
The JM PF665 special-shaped surface rapid forming machine is suitable for chipless processing of sheet metal and profiles, capable of performing various forming processes such as shrinking, stretching, flattening, curving, and flanging.
JIAN MENG's stretching and shrinking technology is renowned for its high precision and low noise, specifically designed for efficient cold working of metal materials under chipless conditions.
One device can handle both profile bending and sheet metal forming tasks simultaneously, whether it is used for the production of new workpieces or the repair and precision calibration of old parts, it is effortless.
The Jian Meng high-speed forming machine supports rapid replacement of various types of molds, enabling tool changes in just seconds to help users flexibly adapt to different processing requirements. This intelligent processing solution is innovative within the industry.
The Jian Meng PF665 curved surface forming machine features a robust design and excellent durability. Its advanced control system enables the equipment to deliver high pressure while achieving precise and delicate adjustments. With high adaptability and rapid mold change capabilities, the machine maintains efficient operation in practical applications.

Technical Specifications
Steel (Rm tensile strength = 400 N/mm²）: 6.0 mm
Aluminum (Rm tensile strength = 250 N/mm²）: 8.0 mm
Copper (Rm tensile strength = 250 N/mm²）: 8.0 mm
Stainless steel (Rm tensile strength = 600 N/mm²）: 4.0 mm
Horizontal throat opening: 665 mm
Vertical throat opening: 430 mm
Work schedule: 8 mm
Work schedule per minute: 0 - 600 times/minute
Rated power: 6.5 kw
Adjustment amount of punch: 80 mm
Pass: Servo motor
Drive: Electric
Stroke frequency: Continuous stroke
Net weight: 2550 kg
Net weight of control cabinet: 90 kg
Length: 2580 mm
Width: 1321 mm
Height: 2400 mm

Forming Technology
JianMeng technology means accurate and chip free cold forming of metal sheets and profiles with low noise.
The same machine can be used for bending curved metal components, forming metal sheets, manufacturing new parts, as well as repairing and precisely correcting components.
Equipped with various forming tooling, these tools can be installed and replaced within seconds to adapt to the machine's tasks.
The Jian Meng PF665 metal shaping machine is built to be robust and durable, capable of delivering tremendous pressure while offering highly responsive control.
The product's versatility stems from its wide range of shaping tooling, which is easy to change, ensuring optimal machine utilization.

Characteristics and Advantages
The JM metal metal power forming machine helps you achieve precise results.
We achieve this goal through an adjustable stroke position driven by a motor, with a repeatability accuracy of 0.1 millimeters and reduced human error.

• Better forming effect: Utilizing JM's kraftformer tools and forming technology enables superior forming results.
• Fast tool changing, electronic fault tracking, and maintenance intervals indicated can ensure machine utilization.
• Higher processing efficiency: Using the JM shrinking machine can reduce the forming time of workpieces.
• The unique molds and forming technology increase the efficiency of sheet metal forming.

Key Features
● New intelligent design
● Free choice of stroke speed
● Adjustable reverse position
● Easy operation
● Achieve reproducible results through stored processing programs
● Tool fast-changing
● Electronic fault tracking
● A variety of shaping tooling ensures versatility

Kraftformer Tools
JM's kraftformer tools are specifically developed for the Jian Meng power forming machine.
No one offers as extensive a range of sheet metal shaping and forming tools as JM, capable of meeting the demands of virtually any forming task and material.
Our shaping tooling is designed for a long service life.
Most JM shaping tooling can be used for a variety of materials and workpiece shapes.
They operate with high precision and are engineered for low-noise forming. For instance, with a single tool, you can shape metal sheets and eliminate wrinkles. Thanks to precise pressure control, the same tool can be utilized for fine-tuning or corrective tasks. This versatility is a distinctive feature of the Jian Meng shrinker.
Due to the fast tool changing system, the time for re-clamping has been shortened.

• Sawing arc
• Clamping
• Leveling
• Stretching
• Shrinking
• Arch
• Extension
• Imitation
• Correction
• Edge planing
• Flanging
• Punching

Application Field

• Aerospace manufacturing and aircraft maintenance: Such as the bending of aircraft skins and the shaping/repair of aircraft engine cowlings.
• Sheet metal processing for rail transit and high-speed rail: Manufacturing of train locomotives and carriages
• Shipbuilding and yacht manufacturing
• Old car restoration and prototype car manufacturing
• Heavy industry prototype production
• Repair industry (aircraft, rail cars, ships)
• Sheet metal custom machining center and OEM factory
• Metal art and large-scale sculpture industry
• Manufacturing of large stainless steel structures
• New energy equipment shell processing
• Irregular metal decorative panel
• Reshaping irregular formed parts

Characteristics / Technical Specifications

• Steel (Rm tensile strength = 400 N/mm²): 6.0 mm
• Aluminum (Rm tensile strength = 250 N/mm²): 8.0 mm
• Copper (Rm tensile strength = 250 N/mm²): 8.0 mm
• Stainless steel (Rm tensile strength = 600 N/mm²): 4.0 mm
• Horizontal throat opening: 665 mm
• Vertical throat opening: 430 mm
• Work schedule: 8 mm
• Work schedule per minute: 0 - 600 times/minute
• Rated power: 6.5 kw
• Adjustment amount of punch: 80 mm
• Pass: Servo motor
• Drive: Electric
• Stroke frequency: Continuous stroke
• Net weight: 2550 kg
• Net weight of control cabinet: 90 kg
• Length: 2580 mm
• Width: 1321 mm
• Height: 2400 mm
