- Jiangsu Dazhong Electric Motor CO., Ltd

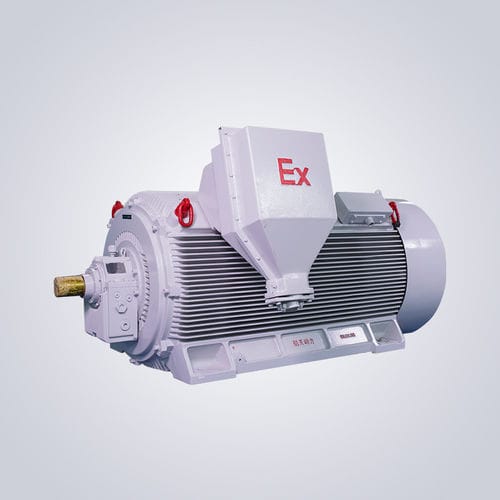

Non-sparking motor Y2Wasynchronousthree-phase6000 V
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, three-phase
- Voltage
- 6000 V, 10000 V, 3000 V
- Protection class
- IP55, IP54, ATEX, explosion-proof, non-sparking
- Number of poles
- 4-pole, 2-pole, 6-pole, 8-pole
- Cooling mechanism
- IC411
- Applications
- for the chemical industry, for the mining industry, for the oil and gas industry, for the metallurgical industry, for power plants
- Other characteristics
- high-voltage
- Power
Min.: 185 kW
(251.53 hp)Max.: 1,800 kW
(2,447.32 hp)
Description
Frame number: 355-560mm
Number of poles: 2-8P
Voltage: 3000V, 6000V, 10000V (or user specified)
Protection level: IP54, IP55
Frame number: 355-560mm, Power range: 185~1800kW, number of poles: 2-8P, Voltage: 3000V, 6000V, 10000V (or user specified), Protection level IP54, IP55, insulation level F, cooling method IC411, explosion-proof level ExnA Ⅱ T3, The efficiency value meets the level 2 energy efficiency requirements in GB30254-2013, and can be used to drive general machinery in various explosive environments. It can be used to drive general machinery in various explosive environments, and is suitable for mining, machinery, metallurgy, petroleum, chemical, power stations, and other occasions.
