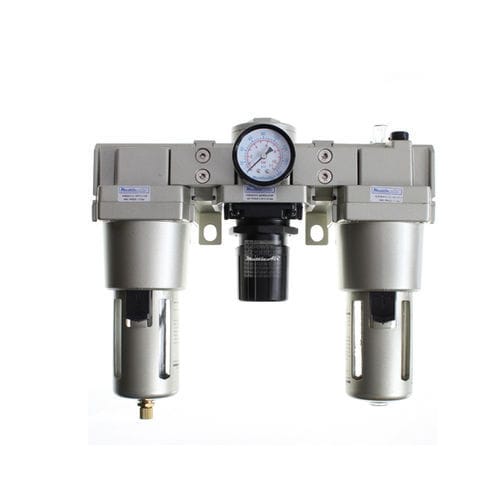

Air filter-regulator-lubricator AC5000-N10D

gasmembranepressure

The air filter pressure reducing valve and pressure regulator sériés are combined with the requirements of our production site, especially for design and production.More advanced performance is achieved in terms of greater output flow and more accurate stability.Has been widely used in self-made system, especially for electric transducer, valve locator, ail kinds of pneumatic instruments, actuators air source filtration, pressure réduction treatment.AII kinds of pressure reducing valves produced by the enterprise are regulated by the national standard GB12244?Gb12246-89 for production and inspection. At this point, the pressure acting on the diaphragm is balanced by the spring force applied.However, due to the external use of the output pressure interférence energy storage price, the output pressure high or low value.When the output pressure is lower than the given value, the balance between membrane tension and the applied spring force is destroyed, and the membrane moves downward, opening the bail valve for air pressure compensation.For example, when the output pressure is higherthan the given value, the diaphragm moves upward, the valve stem and the diaphragm core are separated, and the air pressure is discharged from the small hole to the atmosphère, reaching a new balance.Therefore, the output pressure is always determined to be the desired given value.Air valve unit control gas source is 0.1 MPa.
