Electric actuator

linearstepperlead screw

Product overview

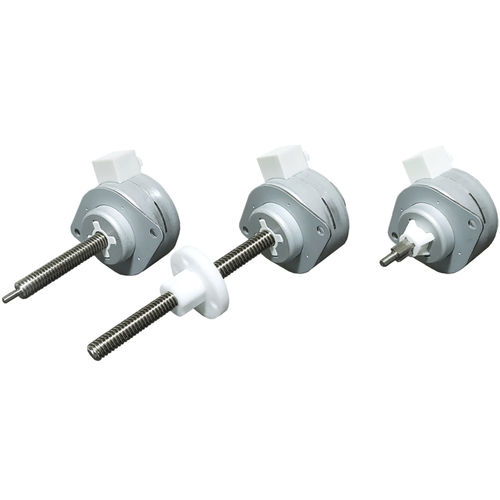

The PM stepper linear actuator in 36 mm frame is offered in External, Non‑Captive and Kaptive configurations. Lead screw end machining and custom stroke lengths are available to match application requirements.

Motor characteristics
Frame size: 36 mm
Polarity: Bi‑polar
Actuator types: External, Non‑captive, Kaptive
Step angles: 7.5°, 15°
Winding options: 5V, 12V
Phase current: 560 mA (5V), 230 mA (12V)
Phase resistance: 9 Ω (5V), 52 Ω (12V)
Phase inductance: 11.5 mH / 72 mH (7.5° 5V/12V), 8 mH / 56 mH (15° 5V/12V)
Power consumption: 5.6 W
Rotor inertia: 8.5 g·cm²
Insulation class: B; Insulation resistance: 100 MΩ
Mass: 120 g

Available lead screw and travel per step

• Step angle 7.5° — Φ4.77 mm: lead 0.635 mm (0.025 in) → travel/step 0.0132 mm (0.00052 in) — Code A
• Step angle 7.5° — Φ4.77 mm: lead 1.27 mm (0.05 in) → travel/step 0.0265 mm (0.00104 in) — Code D
• Step angle 7.5° — Φ4.77 mm: lead 2.54 mm (0.1 in) → travel/step 0.0529 mm (0.00208 in) — Code K
• Step angle 7.5° — Φ6.35 mm: lead 0.6096 mm (0.024 in) → travel/step 0.0127 mm (0.0005 in) — Code AA
• Step angle 7.5° — Φ6.35 mm: lead 1.2192 mm (0.048 in) → travel/step 0.0254 mm (0.001 in) — Code B
• Step angle 7.5° — Φ6.35 mm: lead 2.4384 mm (0.096 in) → travel/step 0.0508 mm (0.002 in) — Code J
• Step angle 15° — Φ4.77 mm: lead 0.635 mm (0.025 in) → travel/step 0.0265 mm (0.00104 in) — Code A
• Step angle 15° — Φ4.77 mm: lead 1.27 mm (0.05 in) → travel/step 0.0529 mm (0.00208 in) — Code D
• Step angle 15° — Φ4.77 mm: lead 2.54 mm (0.1 in) → travel/step 0.1058 mm (0.00417 in) — Code K
• Step angle 15° — Φ6.35 mm: lead 0.6096 mm (0.024 in) → travel/step 0.0254 mm (0.001 in) — Code AA
• Step angle 15° — Φ6.35 mm: lead 1.2192 mm (0.048 in) → travel/step 0.0508 mm (0.002 in) — Code B
• Step angle 15° — Φ6.35 mm: lead 2.4384 mm (0.096 in) → travel/step 0.1016 mm (0.004 in) — Code J

Dimensional drawings
Available variants: External / Non‑Captive / Kaptive (drawings show each variant).

• Stroke 16 mm — Front extension A: 12 ±0.25 mm — Total extension B: 41 mm — Body length C (Max): 31.5 mm
• Stroke 25 mm — Front extension A: 21 ±0.25 mm — Total extension B: 59 mm — Body length C (Max): 40.5 mm
• Stroke 38 mm — Front extension A: 34 ±0.25 mm — Total extension B: 85 mm — Body length C (Max): 53.5 mm

Speed‑thrust curves
Speed‑thrust performance graphs are provided for the 36 mm PM actuator (typically two curve sets for different operating conditions) to assist selection.

Options

• Screw end machining: custom end machining options for lead screws available on request.
• Teflon coating: Teflon‑coated lead screws for greaseless screw‑nut combinations; coating can extend life and improve thrust versus conventional SUS lead screws. Available across lead screw options and all PM actuator types.

Technical specifications

• Brand: DINGS
• Product family / model series: PM Stepper Linear Actuator
• Frame size: 36 mm
• Polarity: Bi‑polar
• Actuator types: External, Non‑captive, Kaptive
• Step angles available: 7.5°, 15°
• Winding voltages: 5V, 12V
• Phase current: 560 mA (5V), 230 mA (12V)
• Phase resistance: 9 Ω (5V), 52 Ω (12V)
• Phase inductance: 11.5 mH / 72 mH (7.5° 5V/12V), 8 mH / 56 mH (15° 5V/12V)
• Power consumption: 5.6 W
• Rotor inertia: 8.5 g·cm²
• Insulation class: B
• Insulation resistance: 100 MΩ
• Mass: 120 g
• Available screw diameters & leads: Φ4.77 mm, Φ6.35 mm (codes: A, D, K, AA, B, J)
• Available strokes (mm): 16, 25, 38
• Options: screw end machining, Teflon coating
