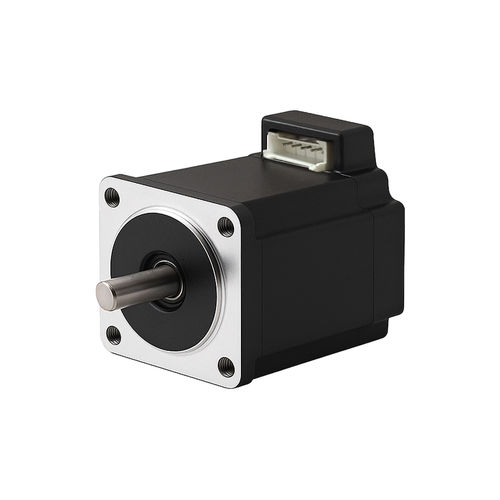

DINGS 5-phase hybrid rotary stepper motor, Size 24 (60 mm), model 24H5044-240-5AL. Designed for precision industrial applications such as automation, robotics and packaging; provides low resonance and repeatable positioning.

Motor Characteristics
Model | Phase | Step angle (°) | Rated current (A) | Resistance (Ω) | Inductance (mH) | Holding torque (N·m) | Rotor inertia (g.cm²) | Length (mm) | Weight (kg)
24H5044-240-5AL | 5 | 0.72 | 2.4 | 0.3 | 0.55 | 0.6 | 230 | 44 | 0.55

Permissible radial load (distance from mounting surface)
5 mm: 210 N
10 mm: 170 N
15 mm: 140 N
20 mm: 120 N

Dimensional Drawing

• Available drawing: 24H5044.png
• Model-specific view: 24H5044-240-5AL-004(REV00).png

Torque Performance Curves
Curve image: 24_torque curve.png

Test Condition
Testing Voltage: 24Vdc
Driver Model: DS-OLF2-FPD
Rated Current: 2.4 A (rms)

Technical specifications

• Model: 24H5044-240-5AL
• Phase: 5
• Step angle: 0.72°
• Rated current: 2.4 A (rms)
• Resistance: 0.3 Ω
• Inductance: 0.55 mH
• Holding torque: 0.6 N·m
• Rotor inertia: 230 g·cm²
• Length: 44 mm
• Weight: 0.55 kg
• Permissible radial loads: 5 mm = 210 N; 10 mm = 170 N; 15 mm = 140 N; 20 mm = 120 N
• Recommended test/setup: 24 Vdc, Driver DS-OLF2-FPD
