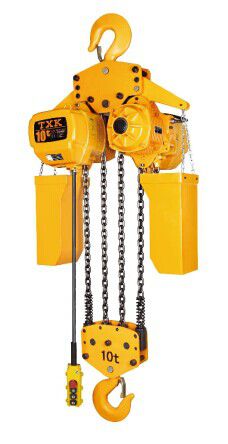

Electric chain hoist TXK SSDHL Series

heavy-duty

TXK SSDHL series electrical chain hoist 10ton TXK SSDHL heavy duty series have two suspensions for option, hook suspension and electric trolley are available, the trolley is designed suitable for all commercial beams, I beam or H beam. With four fall chains, the hoist will move up and down stably and safety. The SSDHL series hoists acquire the CE certification. Parameters: 1.Capacity: 10 ton 2.Lifting height: 3 - 36 meters 3.Lifting speed: 2.7 m/min 4.Motor power: 3.0 Kw 5. Rotation speed: 1440 r/min 6.Insulation grade: F 7. Power supply: 3P 220V~690V 8.Control voltage: 24V / 36V / 48V 9.Spec. of load chain: 11.2 Material: 1. Shell: aluminum alloy Design features: 1.Shell: Light aluminum alloy shell which is light but hard. It shall be adopted for the use in the terrible work environment with a high heat dissipation rate. 2.Inverse phase sequence protecting device: It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply. 3.Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety. 4.Side magnetic braking device: It shall realize the instant brake in case of the power dump. 5.24V/36V decice: It is used to prohibit the emergencies from occurring in case of the leakage in the switch. 6.Chain bag: It shall be light, handsome and durable. 7. Chain: Japan made FEC80, ultra heat-treatable alloy steel chain. Application: Construction industry, automobile making, electric power industry, shipbuilding, logistics and so on.
