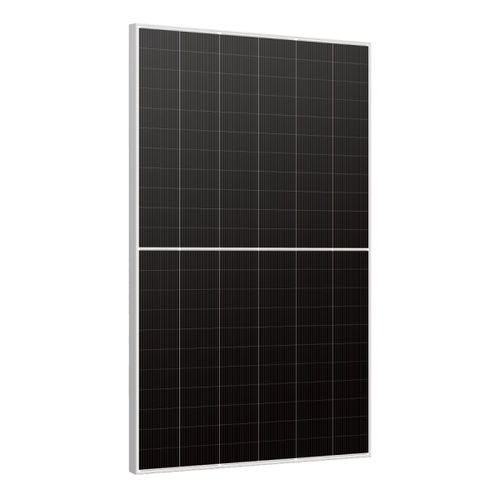

CE PV solar module S9-132GANT
ISOTUV

Add to favorites

Compare this product

Go to the Jiangsu Runda PV Co.,Ltd website for more information

Characteristics

Certifications: TUV, CE, ISO
Peak power (Wp): 680 W, 685 W, 690 W, 695 W, 700 W
Open-circuit voltage: 46,500 mV, 46,690 mV, 46,880 mV, 47,070 mV, 47,260 mV
Short circuit current: 18,690 mA, 18,740 mA, 18,790 mA, 18,840 mA, 18,890 mA
Max power voltage: 38,550 mV, 38,740 mV, 38,940 mV, 39,130 mV, 39,330 mV
Max power current: 17,640 mA, 17,680 mA, 17,720 mA, 17,760 mA, 17,800 mA
Module efficiency: 21.89 %, 22.05 %, 22.21 %, 22.37 %, 22.53 %
Lenght: 2,384 mm
(94 in)
Width: 1,303 mm
(51 in)
Height: 35 mm
(1 in)
Weight: 38 kg
(83.78 lb)

Description

10%-30% Additional Power Generation ▲ 30 years lifespan brings 10-30% additional power generation comparing with conventional P-type module Outstanding Low Light Performance ▲ Higher power output even under low-light environments like on cloudy or foggy days. Zero LID (Light Induced Degradation) ▲ N-type solar cell has no LID naturally which can increase power generation Better Temperature Coefficient ▲ Higher power generation under working conditions, thanks to passivating contact cell technology PID Resistance ▲ Excellent Anti-PID performance guarantee via optimized mass-production process and materials control Enhanced Mechanical Load ▲ Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal) Lower LCOE ▲ Higher bifaciality, higher power output and lower BOS cost Wider Applicability ▲ More application scenes like BIPV, vertical installation, snowfield, high-humid, windy and dusty area
