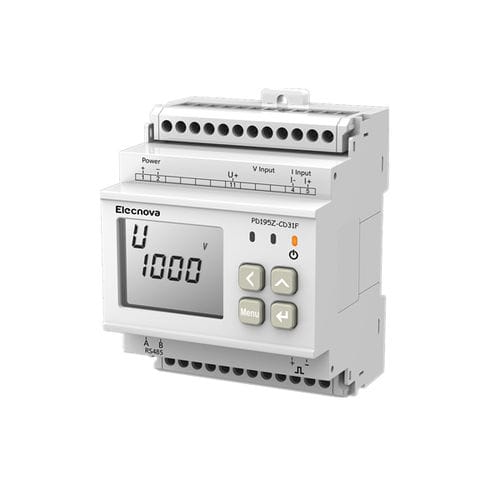

DC power meter PD195Z-CD31F

for EV charger

Elecnova PD195Z-CD31F DC power meter is a core component to the electric vehicle for fast charging power measuring and fiscal billing. It’s available up to 1000V DC voltage with 75mV shunt sensor for the current sensing. AC/DC 80~270V, DC24, DC12V multiple power supply can be selected to adapt to different application environments of customersThe measuring data could be integrated with the management system of the EV charger by Modbus RTU communication protocol. Characteristics - Up to 1000V DC voltage input - I/U/P/PE, Max/Min, Demand - 75mV shunt sensor current sensing - -25℃~+50℃ working temperature - Modbus RTU communication protocol access - Baud rate: 1200~9600 bps - Energy pulse EMC Standard Compliance Electrostatic discharge immunity : IEC61000-4-2-III RF electromagnetic field radiation immunity IEC61000-4-3-III Electrical fast transient burst immunity IEC61000-4-4-IV Shock(Surge) Immunity IEC61000-4-5-IV Immunity t conducted disturbances, induced by radio-frequencycy fields IEC61000-4-6-III Power frequency magnetic field immunity IEC61000-4-8-III Voltage dips and short interruptions immunity IEC61000-4-11-III
