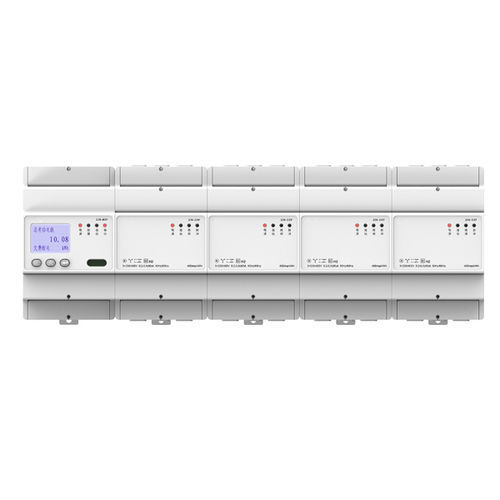

Single-phase electric energy meter S36 series

three-phaseDIN railprepaid

S36 series multi-user prepaid electric energy meter is designed with advanced microprocessor and signal processing technology. It has the functions of full power measurement, electric energy measurement, time-sharing billing, prepaid, demand statistics, event recording, malignant load identification, fault alarm, etc., and is equipped with switching value input, relay output, pulse output and RS485 communication interface. S36 multi-user prepaid electric energy meter consists of a master module and multiple slave modules. The slave modules are divided into direct access type and CT access type. S36 supports direct access to 36 single-phase or 12 three-phase circuits at most, or 24 three-phase circuits through CT. The direct access slave module has built-in magnetic latching relay, and the maximum on-off capacity is 80A - Real-time measurement V/A/P/Q/S/PF/F/THD - Electric energy metering - Multi rates for holidays - Automatic networking - Prepayment - Arrears alarm - Recharge function - Overdraft function - Event records - Preset electric energy Installation advantages: - Adopt embedded connection, making the overall installation cleaner; - The connection between modules supports lead sealing to prevent users from disconnecting the measurement modules Elecnova Network Prepayment Management System (NPMS) 1. Prepaid function: Independant power consumption metering for each circuit, remote electricity selling, automatically power off when the balance shows 0. 2. Remote monitoring: Remote monitoring by PC, available for remote configuration, operation status, historical event record checking and power on/off.
