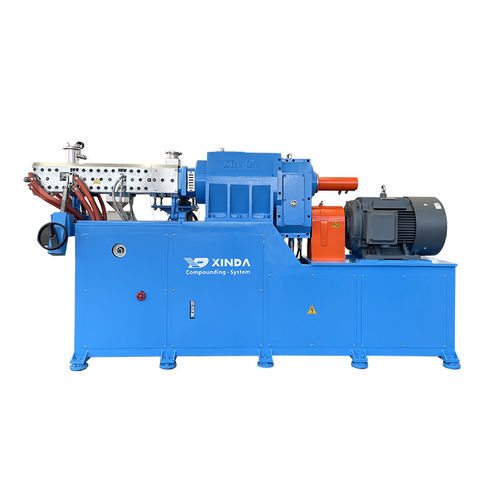

Thermosetting polymer extruder SJW-45
single-screwlaboratory

thermosetting polymer extruder
thermosetting polymer extruder
Add to favorites
Compare this product


Characteristics

Treated material
for thermosetting polymer
Number of screws
single-screw
Other characteristics
laboratory
Output

Min.: 400 kg/h
(881.849 lb/h)

Max.: 800 kg/h
(1,763.6981 lb/h)

Screw diameter

Min.: 20 mm
(0.8 in)

Max.: 125 mm
(4.9 in)

45 mm
(1.8 in)

Screw length

Min.: 1,875 mm
(74 in)

Max.: 3,000 mm
(118 in)

2,730 mm
(107 in)

Maximum speed

Min.: 100 rpm
(628 rad.min-1)

Max.: 800 rpm
(5,027 rad.min-1)

600 rpm
(3,770 rad.min-1)

Torque

Min.: 5 Nm
(4 ft.lb)

Max.: 12 Nm
(9 ft.lb)

10 Nm
(7 ft.lb)

Temperature

Min.: 10 °C
(50 °F)

Max.: 400 °C
(752 °F)

200 °C
(392 °F)

Maximum pressure

Min.: 5 bar
(72.5 psi)

Max.: 15 bar
(217.6 psi)

8 bar
(116 psi)

Overall length

Min.: 1,000 mm
(39 in)

Max.: 4,000 mm
(157 in)

1,500 mm
(59 in)

Overall width

Min.: 1,000 mm
(39 in)

Max.: 2,000 mm
(79 in)

1,800 mm
(71 in)

Total height

Min.: 1,000 mm
(39 in)

Max.: 2,000 mm
(79 in)

1,800 mm
(71 in)

Weight

Min.: 2,000 kg
(4,409 lb)

Max.: 5,000 kg
(11,023 lb)

3,000 kg
(6,614 lb)

Power

Min.: 110 kW
(149.56 hp)

Max.: 200 kW
(271.92 hp)

Description

PSHJ Clamshell Barrel Co-rotating Twin Screw Extruder The barrel can be opened in minutes. This makes product changeover, maintenance and research fast and easy. Both screws and barrels are designed using the building block principle. The screw configuration, barrel setup, feeding and venting, screen changing, way of pelletizing and process requirements, in consideration of the machine's versatility in other general applications.   Application: Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, ect Various plastic inorganic filler, polymer blending (plastic alloy), plastic coloring, ect Various engineering plastic reinforcement of glass fiber, flame-retartant pellets Various antibacterial, insulated, toughening materials for specific uses Light/biology degradable film materials, amylum degradable plastics and multi-functional anti-fog film materials, etc. Specific material for automobiles and household appliance and cable materials, etc Themoplastic elastomers, such as TPR, TPE, and SBS, etc Regenerate pellets for PVC airproof pieces, thermo-soluble glue, etc
