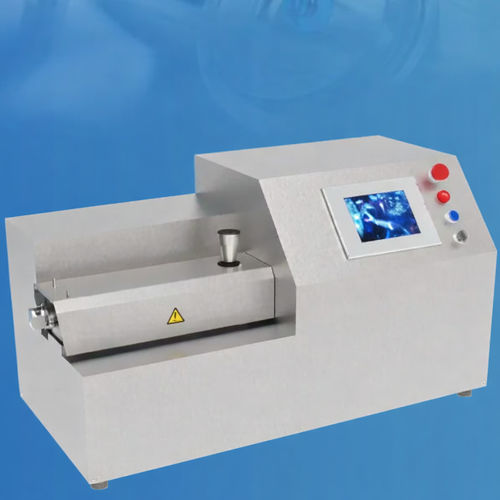

Pharmaceutical screw extruder PSHJ-11 Neo

for hot-melttwin-screwcompact

Characteristic: 1. Feeding system: vibrating feeder and twin-screw feeder to meet the feeding requirements of different materials of customers. 2. Heating method: the upper and lower cylinders are designed to be electrically heated in sections at the same time, with uniform heating. 3. Multi-segment temperature control system (± 0.5 ℃ within the set value range): the temperature control feedback system is adopted to ensure the stability and reproducibility of the hot melting process. 4. Combined twin-screw: the twin-screw adopts the form of multi-section splicing, which integrates mixing, pressurization, melting, extrusion and cooling to ensure the complete integration of main medicine and auxiliary materials. 5. Split barrel design, which can be opened in a few minutes, makes product conversion, equipment maintenance and new product development very convenient. 6. Multi-stage exhaust: Multi-stage exhaust holes are designed to effectively exhaust air and water in molten materials, reduce extrusion pressure and improve product quality. 7. It complies with GMP standards, is easy to disassemble and clean, has three-level password authority, process parameters are automatically controlled by PLC, all data are automatically stored online, and can be exported from USB flash disk. 8. Compact fuselage design, small footprint, and a complete production device with a total length of less than 3 meters (including upstream and downstream auxiliary machines)
