AC motor TBVF SERIES
three-phase380 V6000 V

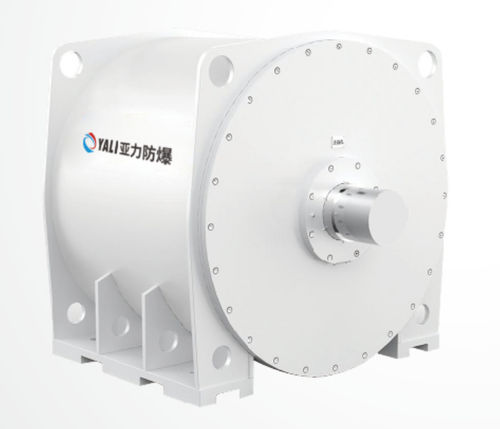

AC motor - TBVF SERIES - Jiangsu Yali explosion-proof motor Co., LTD. - three-phase / 380 V / 6000 V
AC motor - TBVF SERIES - Jiangsu Yali explosion-proof motor Co., LTD. - three-phase / 380 V / 6000 V
Add to favorites
Compare this product
Go to the Jiangsu Yali explosion-proof motor Co., LTD. website for more information

Characteristics

Type
AC, three-phase
Voltage
380 V, 6000 V, 10000 V, 3300 V, 660 V
Configuration
permanent magnet
Protection class
IP65, IP55, corrosion-resistant, for extreme conditions, IP54, IP66, IP56, IP67, IP64, ATEX, dust-proof, explosion-proof, waterproof, increased safety, for harsh environments, vibration-proof, chemical-resistant, for hazardous areas, flameproof
Efficiency classes
IE2
Number of poles
16-pole, 20-pole, 30-poles, 32-pole
Cooling mechanism
IC416, water-cooled
Applications
for industrial applications, for pump, for medical equipment, for conveyors, for conveyor belts, for the chemical industry, for lifting applications, for medical applications, heavy-duty, for underground mine
Other characteristics
high-torque, custom, low-noise, high-power, precision, low-vibration, low-speed, variable-speed, direct-drive, variable-frequency, electrically insulating
Power

Min.: 30 kW
(40.79 hp)

Max.: 3,000 kW
(4,078.86 hp)

Intensity

Min.: 1 A

Max.: 630 A

Torque

Min.: 100 Nm
(73.756215 ft.lb)

Max.: 280,000 Nm
(206,517.401798 ft.lb)

Rotational speed

Min.: 10 rpm
(62.8319 rad.min-1)

Max.: 500 rpm
(3,141.5927 rad.min-1)

Diameter

Min.: 650 mm
(25.59 in)

Max.: 2,250 mm
(88.58 in)

Operating temperature

Min.: -15 °C
(5 °F)

Max.: 40 °C
(104 °F)

Description

TBVF Series Flameproof Variable-Frequency Speed-Regulating Three-Phase Permanent Magnet Synchronous Motor is suitable for driving belt conveyors or conveyor drums in coal mines underground. This series of motors complies with the requirements of: • GB/T 3836.1-2021 Explosive Atmospheres – Part 1: Equipment – General Requirements • GB/T 3836.2-2021 Explosive Atmospheres – Part 2: Equipment Protection by Flameproof Enclosure "d" • GB/T 3836.3-2021 Explosive Atmospheres – Part 3: Equipment Protection by Increased Safety "e".With an explosion-proof marking of Ex db I Mb, the motor is designed for use in coal mining environments where explosive atmospheres containing methane and coal dust may exist.
