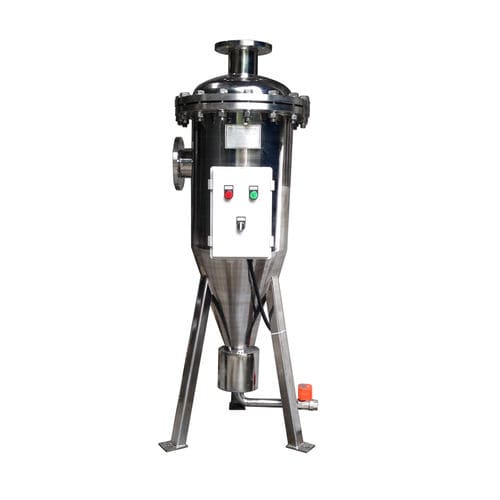

Water filter YLXC II series

for rainwaterparticulatefor solids

Production Instruction YLXC type swirl Desander cyclone and filter set as a whole, mainly used to remove groundwater and underground water, and other solid particles in the water for water source heat pump system, central air-conditioning cooling water, chilled water systems, winter heating and cooling cycle water systems, industrial cooling water system. Widely used in chemical, environmental, food, medicine and many other industrial sectors, in the field of water treatment to achieve Sand, down and dirty, solid-liquid separation effect is remarkable. Operating Principle YLXC type swirl Desander is based on centrifugal sedimentation and density difference of principle, when the water flow at a certain pressure to cut imports from Desander to enter the device, resulting in a strong rotation, as sand and water density, the centrifugal force, centripetal buoyancy, fluid drag force due to the effect of different low density so that rising water from the overflow discharge port density of the sand from the bottom row of sand from the mouth, so as to achieve the purpose of sand. And conditions in a certain range, the greater the water pressure desander, Sand the higher rate, and can use multiple parallel.
