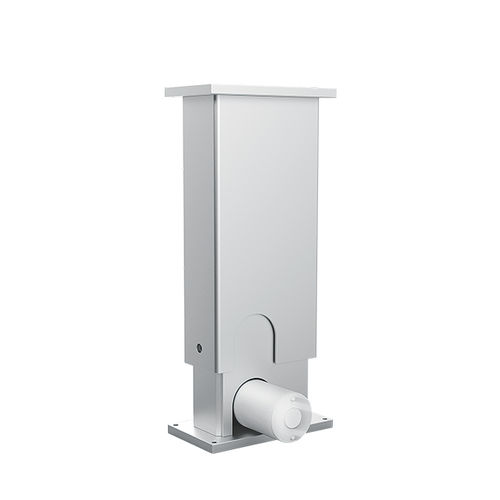

Industrial lifting column JC35ES2
2-stage

Industrial lifting column - JC35ES2 - Jiecang Linear Motion - 2-stage
Industrial lifting column - JC35ES2 - Jiecang Linear Motion - 2-stage
Add to favorites
Compare this product
Go to the Jiecang Linear Motion website for more information

Characteristics

Applications
industrial
Structure
2-stage
Force

1,000 N, 2,000 N, 3,000 N, 4,000 N, 6,000 N

Stroke

Max.: 600 mm
(23.62 in)

Min.: 100 mm
(3.94 in)

Description

• The JC35ES2 column is a square aluminum tube column with 2 sections; it is widely used in various workbenches, such as computer desks, instrument desks, workbenches and video screen systems, etc.; the maximum thrust also has a variety of options: 1000N, 2000N, 3000N, 4000N, 6000N; • The JC35ES2 column is characterized by large load and high strength. • Features And Options • Color: Grey/ Black • IP Grade: IP43 • Installation Dimensions: Conventional: L=S+150 (100 < S<400) • Special: L=S+170 (400 < S < 600) • Noise Level: < 65dB(environmental noise <40dB) • Optional: Hall sensor • Safety nut • Limit Switch: Built-in (electrical) • Weight: About 7.5kg(180/400) (different stroke length and • installation dimensions with different weight) • Static Bending Moment: 500Nm • Approval: IEC60601-1: 2012 • EN 60601-1:2006+A12:2014 • ANSI/AAMI ES60601-1:2005/(R)2012 and A1:2012, • C1:2009/(R)2012 and A2:2010/(R)2012
