Linear actuator JC35SA15
electric24 VIP66

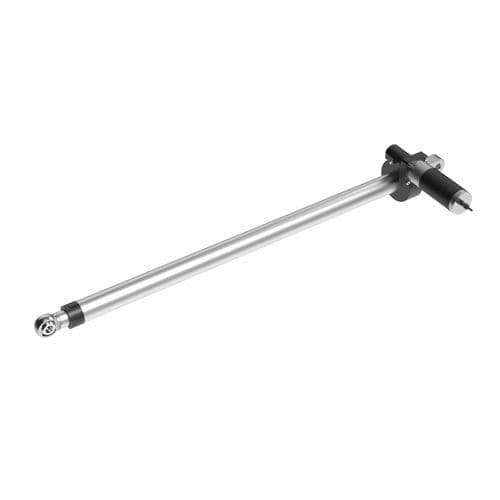

Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66
Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66
Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66 - image - 2
Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66 - image - 3
Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66 - image - 4
Linear actuator - JC35SA15 - Jiecang Linear Motion - electric / 24 V / IP66 - image - 5
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Movement
linear
Type
electric
Voltage
24 V
Protection class
IP66
Applications
industrial
Other characteristics
motorized
Stroke

Max.: 1,130 mm
(44.488 in)

Min.: 700 mm
(27.559 in)

Force

Max.: 60 kN

Min.: 30 kN

Speed

0.5 m/s
(1.64 ft/s)

Operating Temperature

Max.: 60 °C
(140 °F)

Min.: -30 °C
(-22 °F)

Description

- Load speed(mm/s): 0.5 - Stroke:(mm): 700-1130 - IP grade: IP66 - Max. dynamic load(KN): 30 - Max. static load(KN): 60(Half stroke) /40(Full stroke) - Load speed(mm/s): 0.5 - Stroke/installation(mm): 700/1130(customization) - Top clevis aperture(mm): 20 - Type of clevis: Fixed/movable clevis (optional) - IP grade: IP66 - Salt spray test(H): 480 - Use environment(℃): -30 ~ +60
