Robotic rotary module JCRM80

electric

Overview
The Rotary Module JCRM80 from JIECANG is a compact rotary actuator engineered for precise positioning with high torque density in a small footprint. It provides continuous and peak torque suitable for demanding indexing and positioning tasks. Available with 24 VDC or 48 VDC options and a friction-type brake for holding positions.

Illustrations / Images

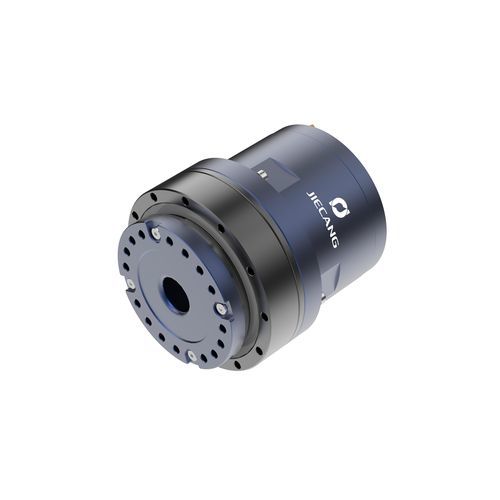

• Main product images and additional views available showing the module exterior and mounting faces.

Module information (as presented on the page)

• Product brief (page top): Rated Torque: 30 Nm; Peak Torque: 70 Nm; Weight: 1.3 kg.
• Detailed table values (module parameters): Rated Voltage: 24 / 48 VDC; Brake: Friction type; Peak Torque: 70 Nm; Reduction Ratio: 100; Instantaneous Max. Allowable Torque: 140 Nm; Outer Diameter: 80 mm; Rated Torque: 31 Nm; Length: 86 mm; Rated Current: 9 / 4.5 A; Weight: 1.3 kg; Rated Speed: 32 rpm; Wiring Hole Diameter: 14 mm; Module Power: 103 W; Positional Accuracy (output side) — Repeatability: ±10 arc-sec; Absolute Accuracy: ±25 arc-sec.

Notes on values

• The page displays a product brief stating Rated Torque = 30 Nm and a detailed parameter table showing Rated Torque = 31 Nm; both values are mentioned here exactly as presented on the page.

Technical specifications

• Model: JCRM80
• Rated Voltage (VDC): 24 / 48
• Brake: Friction type
• Rated Torque: 30 Nm (product brief) / 31 Nm (detailed table)
• Peak Torque (Nm): 70
• Instantaneous Max. Allowable Torque (Nm): 140
• Reduction Ratio: 100
• Outer Diameter (mm): 80
• Length (mm): 86
• Rated Current (A): 9 / 4.5
• Weight (kg): 1.3
• Rated Speed (rpm): 32
• Wiring Hole Diameter (mm): 14
• Module Power (W): 103
• Positional Accuracy (output side): Repeatability ±10 arc-sec; Absolute Accuracy ±25 arc-sec
