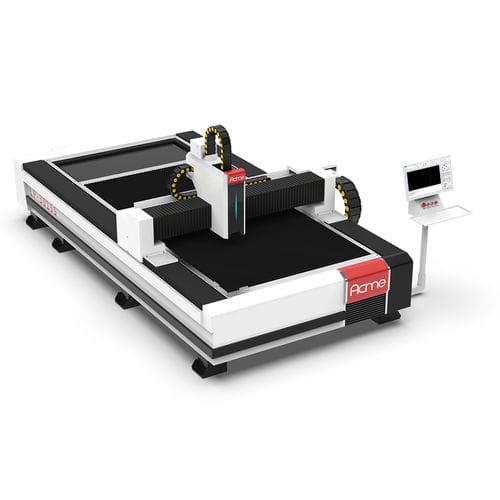

Laser cutting machine LP-12025S
for metalsheet metalprofile

laser cutting machine
laser cutting machine
Add to favorites
Compare this product


Characteristics

Technology
laser
Material
for metal
Product handled
sheet metal, profile
Control type
CNC
Associated function
drilling
Applications
for industrial applications, for metal fabrication, for the automotive industry, for shipbuilding, for agricultural vehicles
Workpiece loading
with automated loading
Phase
three-phase
Other characteristics
high-precision, high-speed, high-performance, high-efficiency, high-power, electric, for heavy-duty applications
X travel

12,000 mm
(472 in)

Y travel

2,500 mm
(98 in)

Cutting speed

Max.: 120,000 mm/min
(78.74 in/s)

Min.: 0 mm/min
(0 in/s)

Laser power

Max.: 12,000 W

Min.: 1,000 W

Repeatability

0.02 mm
(0.0008 in)

Overall length

15,000 mm
(591 in)

Overall width

3,640 mm
(143 in)

Height

1,850 mm
(73 in)

Description

It can change its laser spot to proper size and shape according to cutting materials and thickness. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different plates. Customizable Cutting Area Realize the overall processing of ultra large work pieces, up to 24m, and can be customized according to customer needs. Quickly and accurately cut sheets to meet more cutting needs. Cast Aluminum Welded Beams Made of high quality materials, high density, no deformation. Good dynamic performance, smooth movement. Light weight, corrosion resistance, oxidation resistance, high processing speed. Segmented Modular Workbench The working table adopts modular design, which can be dismantled and replaced without delaying production. Wide range of processing materials can process both sheet metal and large-sized steel profile, saving time Cypcut Cnc System Micro-connection cutting Active obstacle avoidance Real-time monitoring of core components Active reminder of machine maintenance
