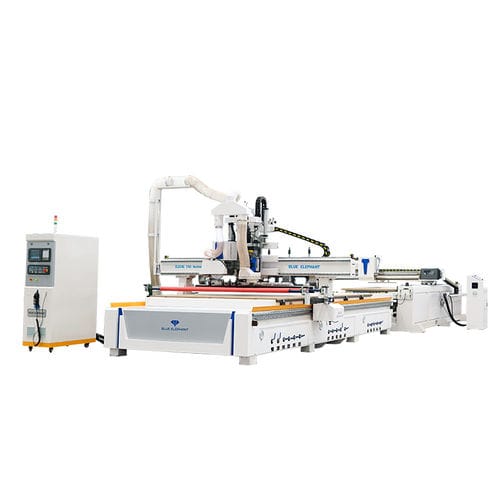

CNC router ELECNC-2140ATC
automatic3-axisspindle

CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle - image - 2
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle - image - 3
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle - image - 4
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle - image - 5
CNC router - ELECNC-2140ATC - Jinan Blue Elephant CNC Machinery Co.,Ltd - automatic / 3-axis / spindle - image - 6
Add to favorites
Compare this product

Characteristics

Control type
CNC, automatic
Number of axes
3-axis
Number of spindles
spindle
Treated material
for wood
Applications
for furniture, heavy-duty, wood
Other characteristics
CE, with automatic tool changer, high-speed, with tool changer
X travel

Min.: 1,300 mm
(51.18 in)

Max.: 2,500 mm
(98.43 in)

2,100 mm
(82.68 in)

Y travel

Min.: 1,200 mm
(47.24 in)

Max.: 3,000 mm
(118.11 in)

4,000 mm
(157.48 in)

Z travel

Min.: 200 mm
(7.87 in)

Max.: 500 mm
(19.69 in)

200 mm
(7.87 in)

Description

2140 nesting CNC machine is ideal for customized panel furniture production. It features fast saw blade cutting and integrates automatic labeling, loading, and unloading in one process, reducing manual errors and improving efficiency. Features 1. The nesting CNC machine is equipped with double saw blades to prevent edge chipping. 2. It supports automatic positioning for multiple sizes. 3. Pressure rollers hold small panels in place to prevent shifting. 4. It has 9.5 kw Italy Hiteco ATC air-cooling spindle, 24,000 RPM. 5. Fast tool changes with linear ATC under the gantry.
