Pick-and-place robotic cell ET3.5-1328

loadingunloadingfeed

Overview
The ET3.5-1328 is a 4-axis column-type robotic nesting cell for automatic loading and labeling of panels, compatible with various CNC nesting machines. It supports fully stacked feeding up to 70 sheets at 18 mm thickness and operates without a ground pit or hydraulic lifting platform, enabling maintenance-free operation.

Description

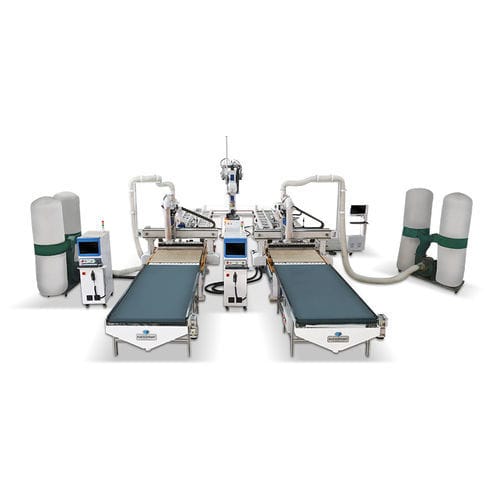

The ET3.5-1328 system includes an operator console, control cabinet, robotic rail, label printer, material suction cups and unloading table. It is designed for high-efficiency panel feeding and labeling integrated with CNC nesting cutting systems and can be configured for single- or multi-station production lines.

Key commercial information

• Price range: $40,000 – $60,000
• Brand: Blue Elephant
• Model: ET3.5-1328
• Standard: CE, ISO9001
• Table size: 1220 × 2800 mm
• Category: Nesting CNC Machine
• Supply ability: 400+ units in stock
• After-sale service: Free lifetime technical support online; overseas service
• Payment terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
• Warranty: 12 month limited warranty for entire machine (extended warranties available for major parts)

Features

• Supports multiple configurations with CNC nesting machines (single machine multi-station cell or one-to-two automated nesting production line)
• Automatic barcode rotation function for optimal label placement and to avoid label damage during cutting
• Sponge suction cups for improved suction force and more reliable material handling
• Requires only one operator, simplifying operation and reducing labor costs

Parameters

• X, Y, Z axis travel: 1300 × 3000 × 1260 mm
• Panel processing size: Length: 2440 / 2800 mm; Width: 1220 mm
• Controller: Leadshine PLC + Blue Elephant labeling software
• Machine structure: Ground track
• Servo motors: Leadshine 1.3 kW × 1; Leadshine 1.3 kW (with brake) × 2; Leadshine 0.75 kW × 1
• Guide rail: Taiwan SHAC — Y 30, Z 30, X 20
• Rack: J&T — Y 2M, X 1.5M
• Lubrication system: 1.5 L automatic lubrication
• Reducer: Domestic planetary reducer
• Printer: Honeywell
• Air pressure: 0.6–0.8 MPa
• Voltage: 380V / 3P / 50Hz

Applications
Mainly used in the furniture, decoration and advertising industries and other wood products processing for custom cabinets, wardrobes and blister door panel production.

Technical specifications

• Table size: 1220 × 2800 mm
• Panel size (max): 2800 × 1220 mm
• Axis travel (X×Y×Z): 1300 × 3000 × 1260 mm
• Control: Leadshine PLC with Blue Elephant labeling software
• Power supply: 380V / 3P / 50Hz
• Air supply: 0.6–0.8 MPa
• Typical configuration: integrated robotic rail, label printer, sponge suction cups, unloading table
