Fiber laser cutting machine 1530SL6T
for metalsheet metaltube

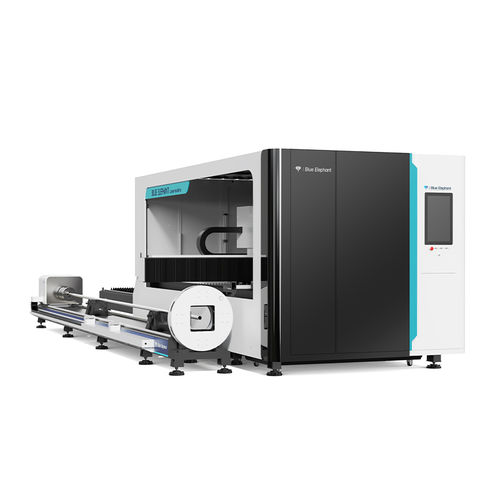

Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube - image - 2
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube - image - 3
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube - image - 4
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube - image - 5
Fiber laser cutting machine - 1530SL6T	 - Jinan Blue Elephant CNC Machinery Co.,Ltd - for metal / sheet metal / tube - image - 6
Add to favorites
Compare this product

Characteristics

Technology
fiber laser
Material
for metal
Product handled
sheet metal, tube
Control type
CNC
Associated function
multi-function
Applications
for industrial applications, for metal fabrication, for the automotive industry, for processing industry
Workpiece loading
with automated loading
Configuration
gantry type
Other characteristics
automatic, high-precision, high-speed, CE
X travel

1,500 mm
(59.06 in)

Min.: 1,500 mm
(59.06 in)

Max.: 2,500 mm
(98.43 in)

Y travel

Min.: 3,000 mm
(118.11 in)

3,000 mm
(118.11 in)

Max.: 6,000 mm
(236.22 in)

Z travel

Min.: 200 mm
(8 in)

300 mm
(12 in)

Max.: 400 mm
(16 in)

Maximum cutting height

Min.: 10 mm
(0.4 in)

10 mm
(0.4 in)

Max.: 30 mm
(1.2 in)

Minimum cutting height

Min.: 0 mm
(0 in)

10 mm
(0.39 in)

Max.: 20 mm
(0.79 in)

Cutting speed

140 m/s
(459.318 ft/s)

Min.: 0 m/s

Max.: 2.333 m/s

Laser power

Min.: 1,000 W

2,000 W

Max.: 6,000 W

Change time

Min.: 25 s

25 s

Max.: 40 s

Description

1530SL6T245-B Semi-enclosed Exchange Table Metal Sheet & Tube Laser Cutting Machine Description 1530SL6T Semi-enclosed Exchange Table Metal Sheet and Tube Laser Cutting Machine features a semi-enclosed protective cover that meets the environmental protection requirements of certain users. This design not only enhances operator safety but also makes it easier to load and unload tubes. The observation window allows users to monitor the cutting process in real time. Additionally, the machine is built with high-quality components to deliver high cutting precision, fast processing speeds, and a long service life. Features 1. The semi-enclosed cover effectively blocks smoke and dust, making it more eco-friendly. 2. The 15-second exchange table enables fast loading and unloading, boosting efficiency. 3. The lightweight aviation aluminum beam increases speed while ensuring precision. 4. The simple control system allows quick cutting of carbon steel, stainless steel, copper, aluminum, and galvanized sheets into desired shapes.
