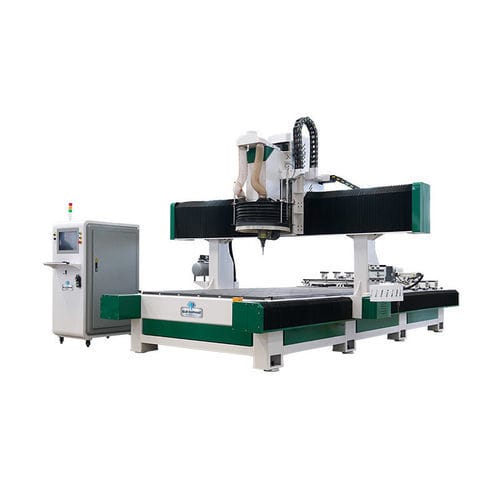

5-axis machining center EW3-2040

verticalfor woodfor PVC

The EW3-2040 5 axis CNC machining center adopts a moving-column structure. It can cut and engrave materials such as wood, acrylic, PVC, resin, foam, EPS, MDF, gypsum, plexiglass, and soft metals. It is widely used in the production of casting molds, sanitary ware molds, automotive molds, resin products, cabinet doors, wooden doors, solid wood furniture, speakers, computer desks, arcade cabinets, and more. - Features: - The C-axis rotates ±360° and the A-axis rotates ±120°, making five-axis machining more flexible. - The moving-column structure provides a larger machining space, enables high-precision curved surface machining, improves efficiency, and reduces manual work. - The moving-column gantry 5 axis CNC machining center features an oversized worktable that supports large workpieces and 3D molds. - The moving-column gantry 5 axis CNC machine performs precise machining from five directions without re-clamping, shortens the machining cycle, and reduces material waste. - Parameters: - Model: EW3-2040 - X, Y, Z axis travel: 2000*4000*600mm - Types of magazine: Beam end disc - Tools of magazine: 8 - Voltage: 380V/3PH/50HZ - Control system: LNC 8260 RTCP - Spindle: HQD five-axis head including 12kw F63 tool holder spindle - Inverter: Fuling Inverter 15KW - Drives and motors: Leadshine servo - Bed structure: Moving column gantry - Reducer: Motoreducer MVB-120-10-K-P1 - Table structure: T-slot & Vacuum working table, 8 divisions - Side panel: Welding columns - Chassis: 5 Axis Rittal - Linear guide: Taiwan SHAC XY35, Z30 - Rack: JT 2M - Lubrication system: 1.5L Automatic lubrication - Tool setting: Fixed tool setter - Applications: The five-axis CNC machining center is a high-precision, high-efficiency CNC machining tool with the ability to process simultaneously in multiple axes. It can process workpieces in different angles and directions, so as to achieve more complex part processing and higher processing accuracy. Such as complex surface processing, multi-angle hole processing, complex three-dimensional parts processing, high-precision parts processing, etc. - Caractéristiques / Spécifications techniques: - Brand: Blue Elephant - Model: EW3-2040 - Standard: CE, ISO9001 - Table size: 2000mm*4000mm - Supply Ability: 400+ Units in Stock
