Floor-standing articulated arm KR 210

underfloorindustrial

Summary

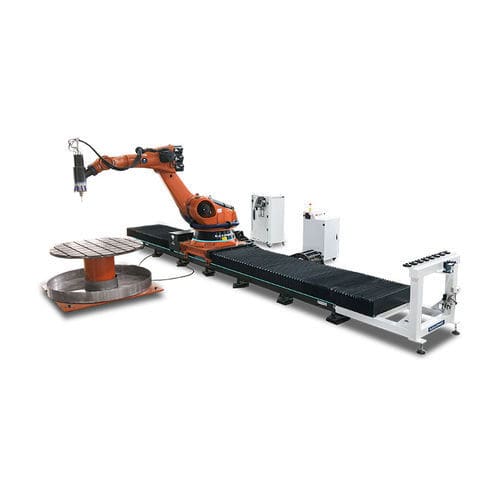

This 6-axis rail-type engraving robot combines a KUKA R2700 robotic arm (KR210) mounted on a 6 m linear track to extend the working envelope for large and complex non-metal workpieces. It supports automatic tool changing and is suitable for foam, wood, stone and plastics; typical applications include furniture, mold making, sanitary ware and film & TV props.

Overview

• Category: Robotic Arm
• Supply ability: 350+ Units in Stock
• After-sale service: Free lifetime technical support online; overseas service
• Payment terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
• Warranty: 12 month limited warranty for entire machine (extended warranties available for major parts)

Features

• Six-axis robot with multiple joint axes combined with external rotary axis and linear slide rail for high machining flexibility.
• Configuration options: 6-axis robot + fixed table (multiple stations) suitable for small-to-medium parts with limited height.
• 6-axis robot + rotary table (7 axes total) for full 360° all-around engraving—ideal for 3D sculptures and human figures.
• 6-axis robot mounted on a linear track (orbital movement) to extend working range for very large foam molds and oversized workpieces.

Technical specifications

• Product type: Automatic 6 Axis CNC Engraving Robot
• Brand (robot specification): KUKA KR210 R2700-2
• Model designation: KR 210
• Number of axes: 6
• Rated load: 210 Kg
• Maximum load: 275 Kg
• Maximum wingspan (reach): 2701 mm
• Linear track (movement distance): 6 m
• Machine weight: 1077 Kg
• Maximum workpiece diameter: 1300 mm
• Repeatability: ± 0.05 mm
• Chassis voltage / frequency: 380V / 50Hz / 3P
• Control system: Blue Elephant customized system
• Inverter: Fuling 15 KW
• Spindle: JST 11 KW liquid-cooling, tool changer / BT40 / 380V / 15000 rpm
• External rotary axis: cast iron, diameter 1500 mm
• Maximum load of rotating table: 500 Kg
• Table structure: Cast Iron T-Slot countertop
• Tool magazine: Linear, 8 tools
• Axis motion ranges and speeds:
  • Axis 1: +/-185°, 120°/s
  • Axis 2: -140° / -5°, 115°/s
  • Axis 3: -120° / 168°, 112°/s
  • Axis 4: +/-350°, 179°/s
  • Axis 5: +/-125°, 172°/s
  • Axis 6: +/-350°, 220°/s
