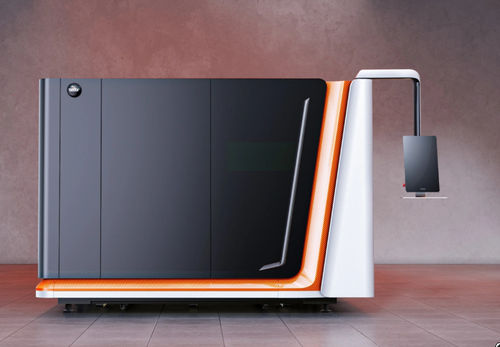

Fiber laser cutting machine P series
for metalfor carbon steelfor thick sheet metal

Fiber laser cutting machine - P series - Jinan Bodor CNC machine CO.,LTD. - for metal / for carbon steel / for thick sheet metal
Fiber laser cutting machine - P series - Jinan Bodor CNC machine CO.,LTD. - for metal / for carbon steel / for thick sheet metal
Fiber laser cutting machine - P series - Jinan Bodor CNC machine CO.,LTD. - for metal / for carbon steel / for thick sheet metal - image - 2
Fiber laser cutting machine - P series - Jinan Bodor CNC machine CO.,LTD. - for metal / for carbon steel / for thick sheet metal - image - 3
Fiber laser cutting machine - P series - Jinan Bodor CNC machine CO.,LTD. - for metal / for carbon steel / for thick sheet metal - image - 4
Add to favorites
Compare this product

Characteristics

Technology
fiber laser
Material
for metal, for carbon steel
Product handled
for thin sheet metal, for thick sheet metal
Control type
CNC
Applications
for industrial applications, for the automotive industry, for metal fabrication
Configuration
XY
Other characteristics
high-performance, automatic, high-precision, high-speed, for pipe ends, precision, CE, multi-thickness, high-efficiency, for large parts, rack-and-pinion, with conveyor, SGS
X travel

3,048 mm, 4,000 mm, 6,500 mm, 8,050 mm
(120 in, 157.48 in, 255.91 in, 316.93 in)

Y travel

1,524 mm, 2,000 mm, 2,500 mm
(60 in, 78.74 in, 98.43 in)

Z travel

350 mm, 370 mm
(14 in, 15 in)

Cutting speed

200 m/min

Laser power

Max.: 60,000 W

Min.: 3,000 W

Acceleration

27.47 m/s², 39.24 m/s²
(90.12 ft/s², 128.74 ft/s²)

Overall length

9,450 mm, 11,599 mm, 16,888 mm, 20,016 mm
(372 in, 457 in, 665 in, 788 in)

Maximum width

2,240 mm, 3,380 mm, 3,872 mm
(88 in, 133 in, 152 in)

Height

2,519 mm, 2,520 mm, 2,636 mm, 2,718 mm
(99 in, 99 in, 104 in, 107 in)

Weight

1,090 kg, 1,450 kg, 2,510 kg, 5,100 kg, 6,320 kg
(2,403.04 lb, 3,196.7 lb, 5,533.6 lb, 11,243.58 lb, 13,933.21 lb)

Accuracy

0.02 %, 0.03 %, 0.05 %

Description

Bodor P Series laser cutting machine is engineered to turbocharge your productivity. Say goodbye to tedious operations – just a single click starts automated cutting, saving you valuable time and enhancing efficiency. Our commitment to minimizing resource waste is unwavering. The P Series is designed for efficient use of materials, gases, and electricity, reducing costs and environmental impact while maximizing value. Simplifying operations is our forte. Our one-second edge finding technology eliminates the hassle of manually locating cutting positions. An intuitive touchscreen interface makes operation straightforward, requiring minimal training for seamless integration. Safety and maintainability are paramount. Equipped with visual collision detection and active collision avoidance functions, our equipment ensures operational safety. Automatic cleaning and intelligent air pressure control extend equipment lifespan and reduce maintenance costs. We are committed to delivering exceptional cutting quality every time. This translates to more accurate products, reduced waste, and happier customers. High-speed cutting processes provide faster cutting speeds for increased production efficiency. With the P Series, let's embrace the integration of smart. It's equipped with Automatic Seam Compensation and Automatic Nozzle Changer, thus reducing manual intervention and enabling users to fully immerse in a smart cutting environment.
