Laser welding machine Aqu

TIGMIGmanual

Overview

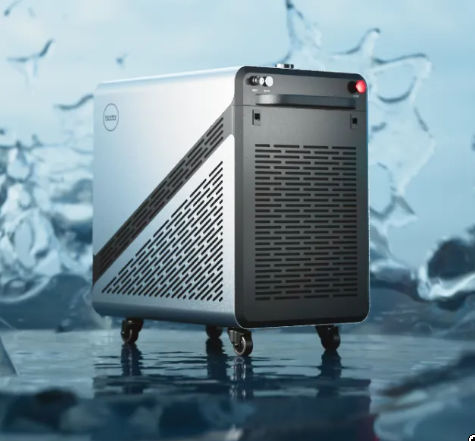

Aqu Series self-cooling handheld laser welder delivers full-rated power without an external water-cooling loop. Designed for portable and on-site welding, the series supports continuous operation and multiple welding modes to meet a wide range of metal-joining needs.

Key Benefits

• Full-rated power output across models to ensure consistent welding performance.
• Higher welding speed for thin sheets: up to ~2× faster than comparable MIG/TIG under similar conditions; 1 mm sheet speed up to 190 cm/min (in 1500 W class comparison).
• Intuitive knob interface for rapid operator setup and simple parameter changes.
• Reserved external control I/O for integration with automation and robotic systems.
• Multiple power levels enable deeper penetration and robust welds across materials and thicknesses.

Performance & Welding Modes
Supports fish-scale (stitch) welding and spot welding with full power delivery to produce smooth, neat seams suitable for industrial finishing requirements.

Powers & Typical Maximum Penetration Depths

• 1200 W — typical max penetration up to 4 mm
• 1500 W — typical max penetration up to 5 mm
• 2000 W — typical max penetration up to 6 mm
• 3000 W — typical max penetration up to 8 mm

Efficiency & Productivity

• Overall welding efficiency improvement: approximately 20% versus prior-generation/water-cooled solutions in similar class (example site data).
• 1 mm sheet welding speed: up to 190 cm/min (1500 W class comparison).
• Reduced consumable costs (process changes such as gas selection can substantially lower shielding gas expenses).
• Lower labor and post-processing requirements: fewer grinding steps and reduced rework in many applications.

Cutting / Cleaning Capabilities

• Maximum cutting thickness at full power: up to ~5 mm (depending on material).
• Maximum cleaning width: up to 120 mm for surface rust/paint/stain removal (professional cleaning options may extend this width).

Quality & Certification
Welded components demonstrated strong bend resistance, hardness and tensile properties in CNAS-referenced tests, meeting or exceeding market expectations for welded part performance.

System & Reliability
Equipped with a self-developed dual-core control motherboard and engineered for stable 24/7 operation in demanding production environments.

Automation & Integration
Reserved external control I/O enables straightforward connection to automation devices, conveyors and robotic systems for semi- or fully-automated workflows.

Cost Efficiency

• Example consumable savings: process adjustments (e.g., gas choice) can yield ~25% lower consumable costs (illustrative figures from site data).
• Example labor savings: faster welding cycles and reduced post-processing can decrease labor needs by up to ~50% in some applications.
• Faster qualification: some applications report welding-ready results after minimal setup (~0.5 h) without extensive additional certification.

Applicable Industries
Suitable for kitchenware, sheet metal fabrication, stainless-steel products, air ducts, shelving, handicrafts, stair railings, computer cases, cabinets and furniture/appliance manufacturing.

Product Variants / Models
Available power configurations: 1200 W, 1500 W, 2000 W, 3000 W to suit different material thicknesses and production requirements.

Technical specifications

• Product family: Aqu Series (self-cooling handheld laser welder)
• Brand: Bodor
• Power options: 1200 W; 1500 W; 2000 W; 3000 W
• Typical max penetration: 1200 W → ~4 mm; 1500 W → ~5 mm; 2000 W → ~6 mm; 3000 W → ~8 mm
• Welding speed example: up to 190 cm/min for 1 mm sheets (1500 W class reference)
• Cooling: self-cooling design (no external water loop required)
• Welding modes: fish-scale/stitch welding, spot welding, continuous welding
• Control interface: knob-based interactive design; reserved external control I/O for automation
• System electronics: dual-core motherboard for stable 24/7 operation
• Cleaning capability: typical max cleaning width up to 120 mm (professional options available)
• Max cutting thickness (typical at full power): up to ~5 mm
• Certifications: CNAS-referenced welded component performance data
• Cost benefits: reduced consumables, lower labor and decreased post-processing
• Applications: kitchenware, sheet metal processing, stainless steel products, ducts, shelving, handicrafts, railings, computer cases, cabinets, furniture/appliances
